Description
in-lite ACE HIGH Corten - 10201803 from in-lite built for clean, modern outdoor lighting systems.

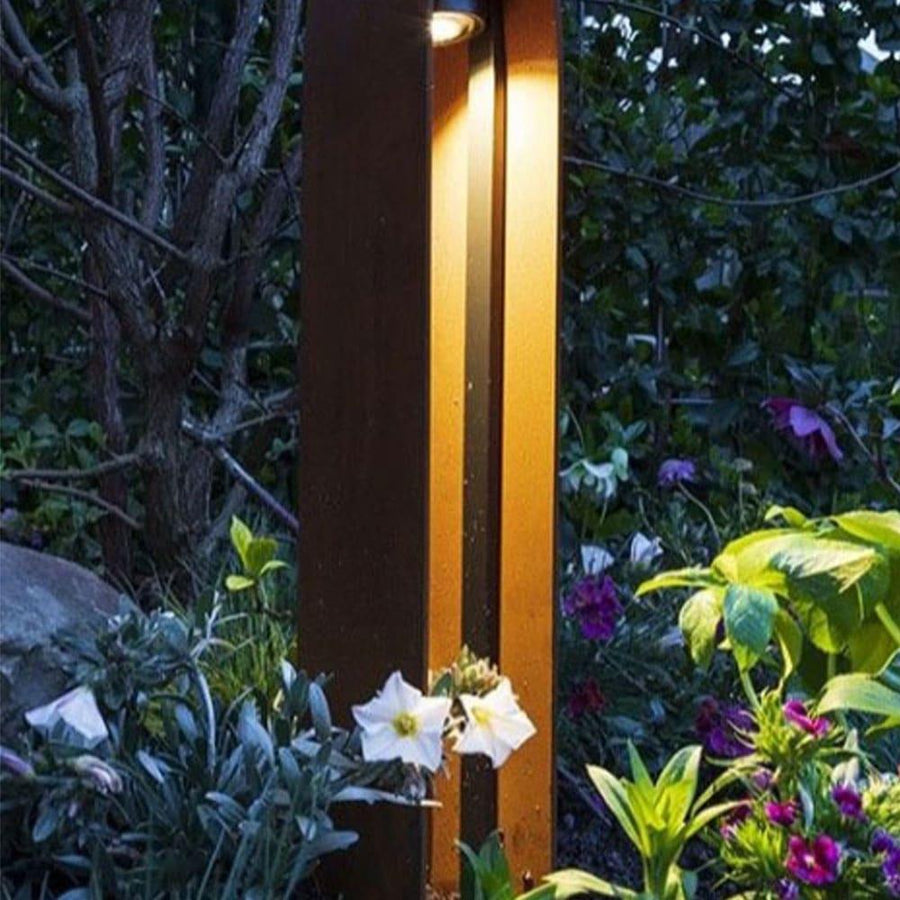

Path light ACE HIGH produces a downward dispersed light on two sides, making it perfect for use between plants and ornamental grasses.
The EASY-LOCK is supplied as standard with this luminaire. The cable length on this luminaire is 60 cm.
The EASY-LOCK is supplied as standard with this luminaire. The cable length on this luminaire is 60 cm.
- Produces an attractive downward light
- Designed for illuminating vegetation, a driveway or walkway
- Tilting light source
Installation advice:
An ACE HIGH every 2 to 3 meters

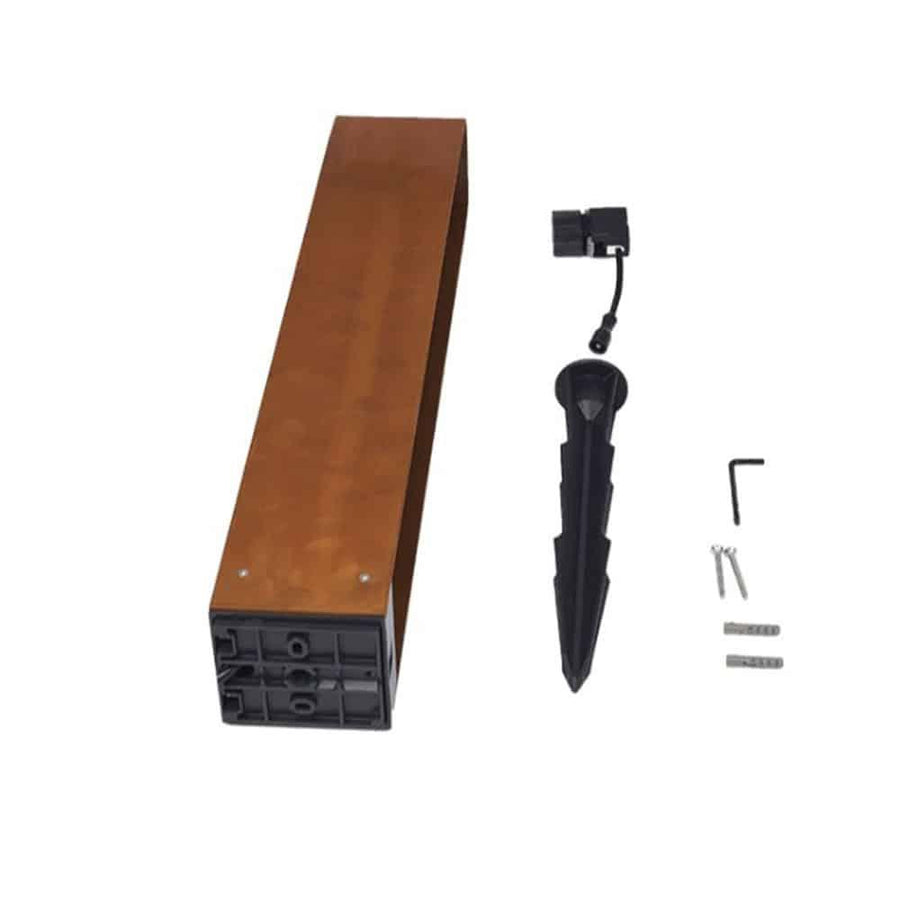

IN THE PACKAGE: INCLUDED IN PACKAGE
- 1x EASY LOCK
- 60 cm Fixture cable
- 1x Ground pin
- 2x Nylon plug
- 2x Screw
- 1x Torx wrench
Product Details

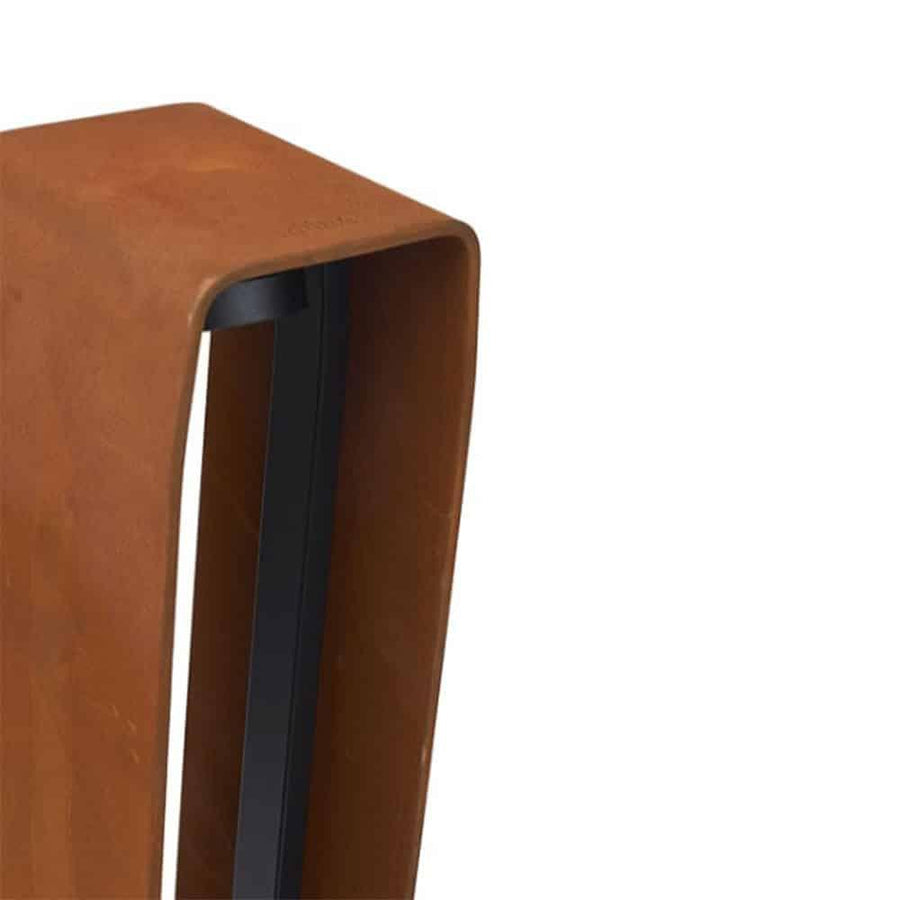

Path light ACE HIGH produces a downward dispersed light on two sides, making it perfect for use between plants and ornamental grasses. The fixture is around 50 cm high and has a light source that can be tilted 10 degrees. This lets you easily accent specific areas of the border without the light source being visible. ACE HIGH is available in a variaty of colors and can easily be combined with the other outdoor lights in the ACE concept.
Specs
Art. nr.
10201803
Application
Border, Driveway, Path
CRI
94
Color
Corten
EAN code
8717051006067
Energy label
G
Height (inch)
19.2913
Height (mm)
490
IP class
55
Length (inch)
3.3858
Length (mm)
86
Light direction
Adjustable
Types of Light
Direct
Efficiency (Lumen/Watt)
28
Net luminous flux (Lumen)
85
Power [W]
3
Processing
Concrete, Grass, Gravel, Natural stone, Soil, Wood
Article group
Path lights
Voltage
12 volt
VA value
5.3
Width (inch)
3.0709
Width (mm)
78
Color temperature
3000
Material finishing/coating
FCBV
Luminous intensity [Cd]
110
Power factor
0.57
Installation instructions
Installed with screws on hard surfaces or with a peg in a soft surfaces (both included).
Important: The ACE HIGH produces a downward light on two sides. The light source in the fixture is can be tilted slightly (10 degrees). For a 90-degree tiltable soft light on one side, we recommend ACE.
Important: The ACE HIGH produces a downward light on two sides. The light source in the fixture is can be tilted slightly (10 degrees). For a 90-degree tiltable soft light on one side, we recommend ACE.
