Description
in-lite ACE DOWN Dark Grey - 10301850 from in-lite built for clean, modern outdoor lighting systems.
ACE DOWN wall fixture produces a focused beam of light and can be mounted on a wall or fence. The light source lies deep within the fixture to ensure the light is not blinding. The width of the light provided by the ACE DOWN can be adjusted using the separately available SHUTTER 1. Available in 5 different colors: Dark Grey, White, Rose Silver, Corten and Flat Grey.
Tip: Think of an extension cable
Tip: Think of an extension cable
- Produces a focused downward light
- Designed for illuminating a fence or wall
- Lighting effect can be adjusted with several accessories
Installation advice:
An ACE DOWN every 2 to 2½ meters at a height of 1.4 to 1.8 meters

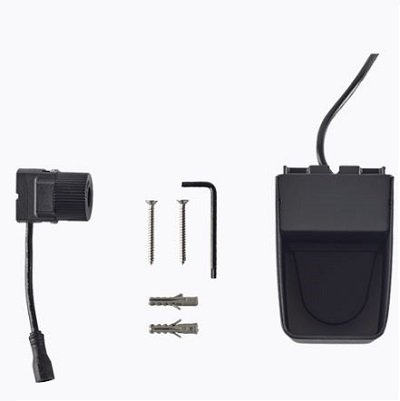

IN THE PACKAGE: INCLUDED IN PACKAGE
- 1x EASY LOCK
- 60 cm Fixture cable
- 2x Nylon plug
- 2x Screw
- 1x Torx wrench
Product Details
ACE DOWN wall fixture produces a focused beam of light and can be mounted on a wall or fence. The light source lies deep within the fixture to ensure the light is not blinding. The width of the light provided by the ACE DOWN can be adjusted using the separately available SHUTTER 1.

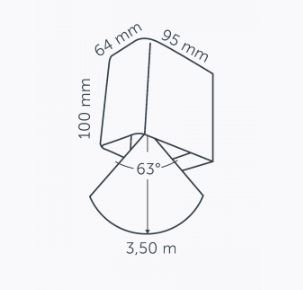

Specs
Art. nr.
10301850
Application
Canopy, Facade, Fence/wall , House
Mounting depth (inch)
0
Recessed depth (mm)
0
CRI
91
Color
DarkGrey
EAN code
8717051003547
Energy label
G
Height (inch)
3.937
Height (mm)
100
IP class
55
Length (inch)
3.7402
Length (mm)
95
Light direction
Downward
Types of Light
Direct
Efficiency (Lumen/Watt)
58
Net luminous flux (Lumen)
173
Power [W]
3
Processing
Concrete, Wood
Article group
Wall lights
Voltage
12 volt
VA value
5.3
Width (inch)
2.5197
Width (mm)
64
Color temperature
3000
Material finishing/coating
FCBV
Luminous intensity [Cd]
196
Power factor
0.57
Installation instructions
Mount using the included screws and plugs. Watch the instructional videos on the installation tips page for information on installing the in-lite system.
