Description
in-lite ACE DOWN 100-230V Dark Grey - 10302110 from in-lite built for clean, modern outdoor lighting systems.

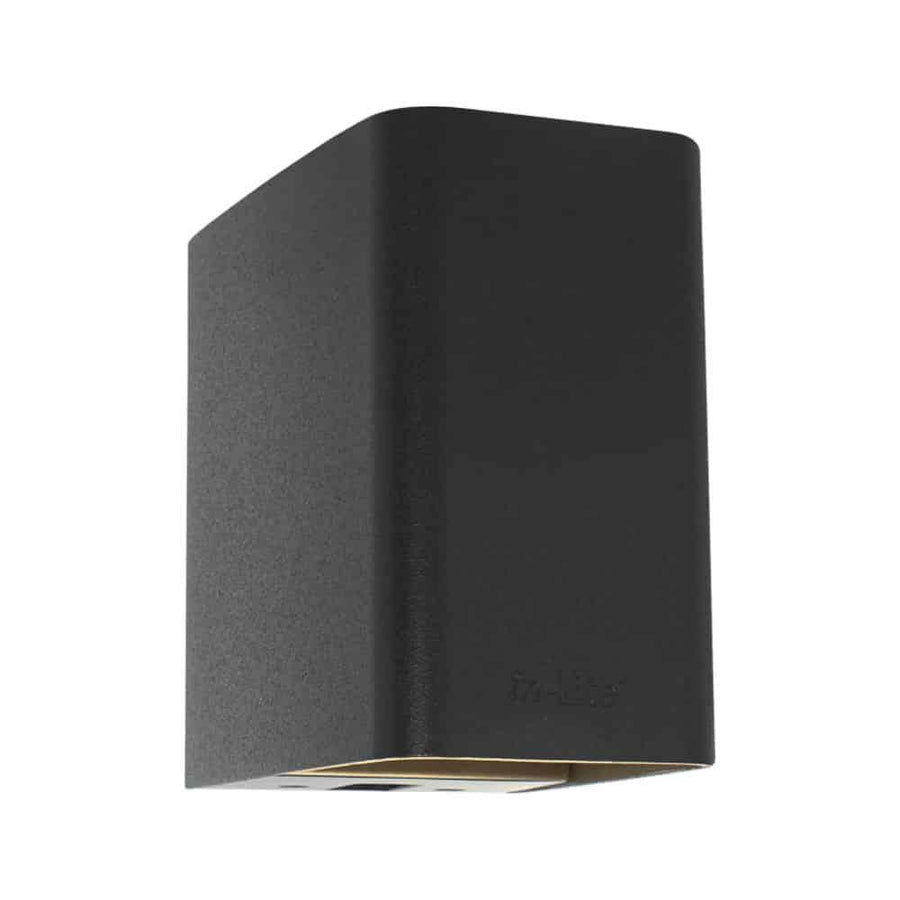

Wall fixture ACE DOWN 100-230V provides a directional light beam and is suitable for mounting on a wall or fence. Available in 5 different colors: Dark Grey, White, Rose Silver, Corten and Flat Grey.
- Produces a focused downward light

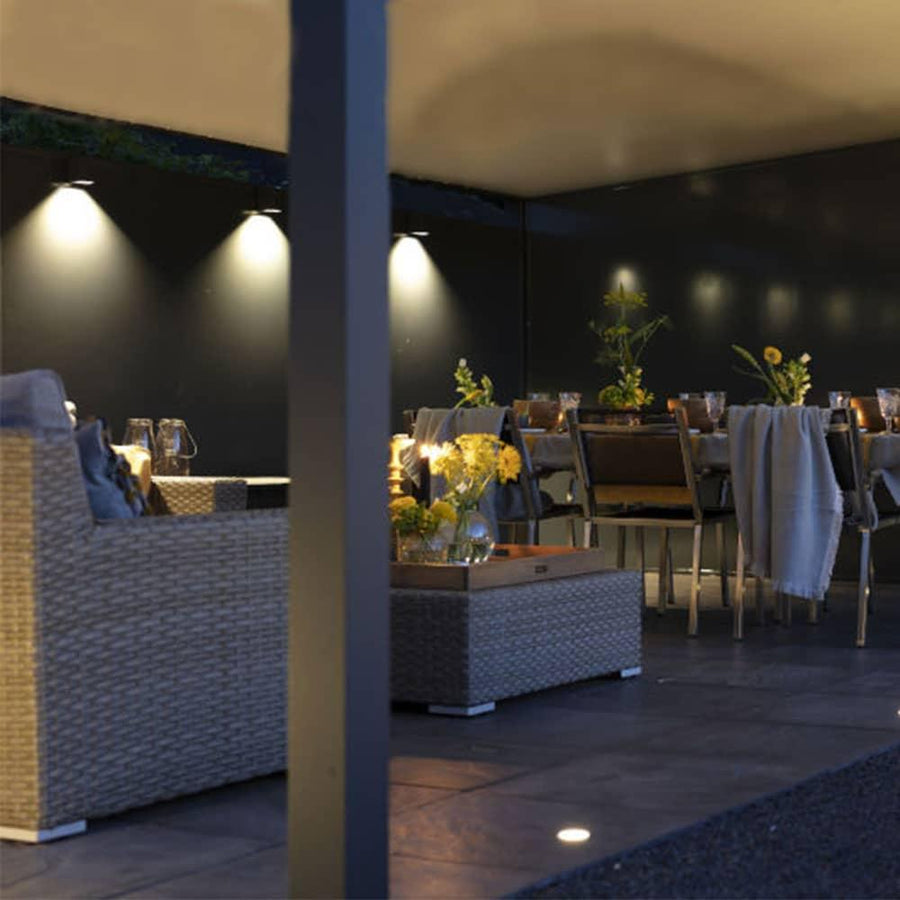

- Designed for illuminating a fence or wall
- Connects directly to 230 volt
Installation advice:
An ACE DOWN 100-230V every 2 to 2½ meters at a height of 1.4 to 1.8 meters

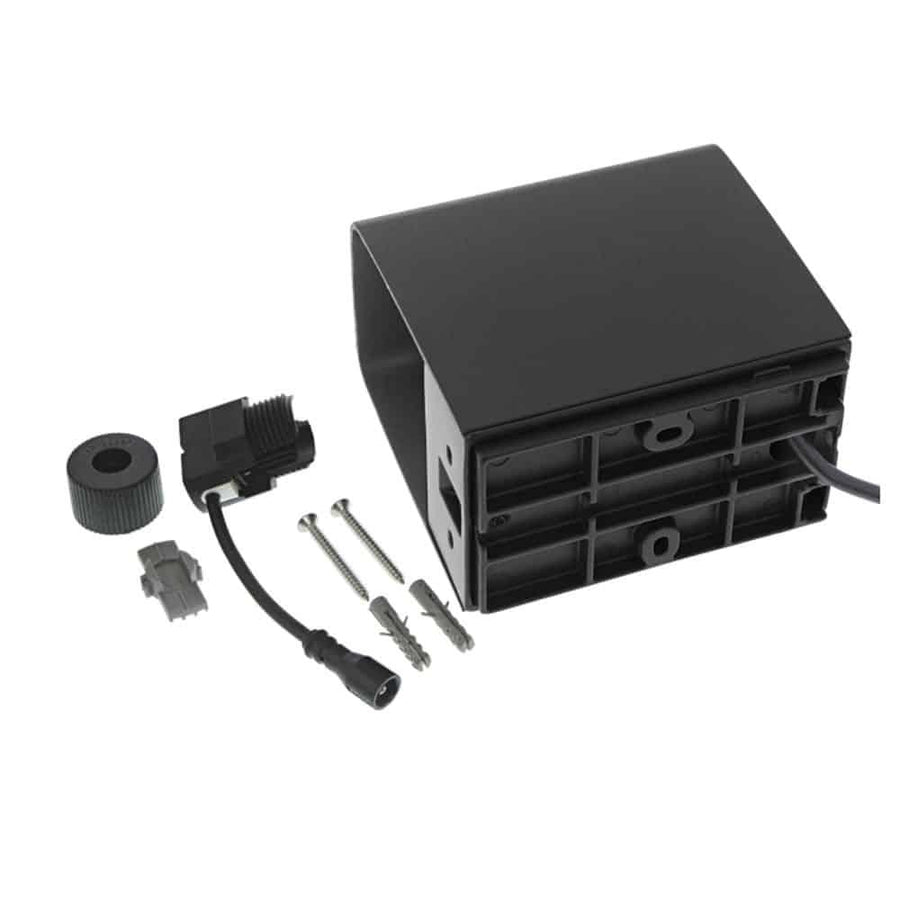

IN THE PACKAGE: INCLUDED IN PACKAGE
- ACE DOWN 100-230V
- 2x Nylon plug
- 2x Screw
- 1x Torx wrench
Product Details
Wall fixture ACE DOWN 100-230V is suitable for connection to mains power only. This makes the fixture suitable for mounting on a home, garage or shed. The fixture provides a directional beam of light in downward direction. Use accessory SHUTTER 2 to adjust to any desired beam width.
Specs
Art. nr.
10302110
Application
Canopy, Facade, Fence/wall , House
CRI
92
Color
DarkGrey
EAN code
8717051005312
Energy label
G
Height (inch)
3.937
Height (mm)
100
IP class
55
Length (inch)
4.0551
Length (mm)
103
Light direction
Downward
Types of Light
Direct
Efficiency (Lumen/Watt)
41
Net luminous flux (Lumen)
186
Power [W]
4.5
Article group
Wall lights
Voltage
120 volt
VA value
11.8
Width (inch)
3.937
Width (mm)
100
Color temperature
3000
Material finishing/coating
FCBV
Luminous intensity [Cd]
216
Power factor
0.4
Installation instructions
Installation advice
ACE DOWN 100-230V can only be connected to the regular power grid and cannot be controlled via an in-lite HUB or SMART HUB transformer. Please consult an electrician or professional for installation.
Need help choosing compatible parts? Contact The LA Firm for project support.
