Description

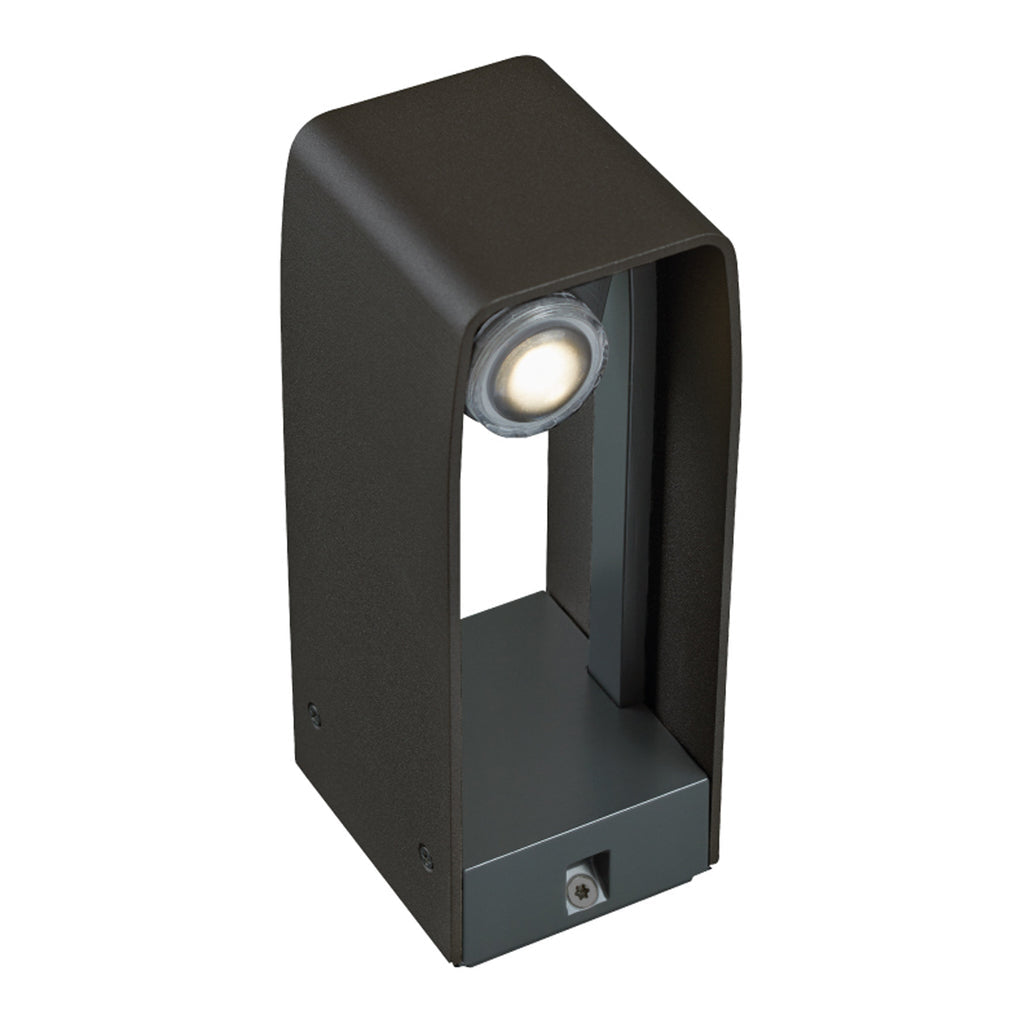

in-lite ACE Dark Grey - 10202350 from in-lite built for clean, modern outdoor lighting systems.

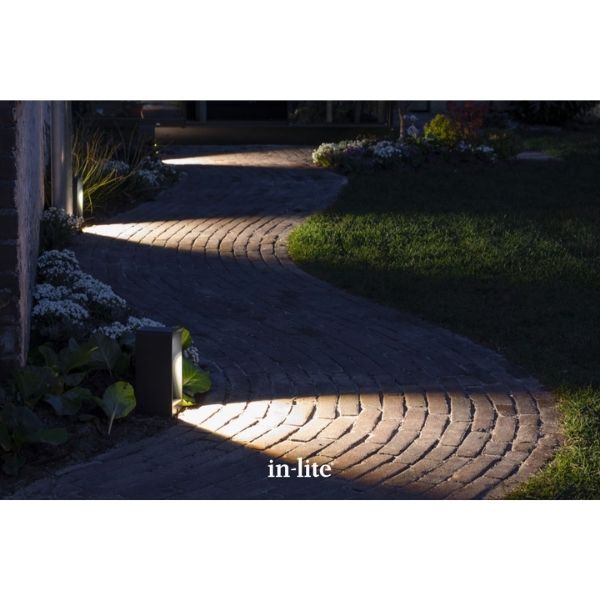

Path light ACE provides a soft light that can be used to illuminate a path or driveway. The light source in the fixture can be tilted. This makes the ACE perfect for highlighting a border, fence or other specific yard features.
- Produces an attractive soft light
- Designed for illuminating a driveway or walkway
- Tilting light source
IN THE PACKAGE: INCLUDED IN PACKAGE
- 1x EASY LOCK
- 60 cm Fixture cable
- 1x Ground pin
- 2x Nylon plug
- 2x Screw
- 1x Torx wrench
Product Details
Path light ACE provides a string light suitable for illuminating a path or driveway. The light source in the fixture is tiltable. This also makes ACE suitable for highlighting the border, fence or other specific garden elements.
Available in different colors: Dark Grey, Corten, White, Rose Silver and Flat Grey. High quality FCBV coating. Combines well with other fixtures in the same color.
ACE is part of a concept. This means that there are multiple products with the same design so you can choose one look for your garden. Other products from the ACE concept are: ACE HIGH, ACE DOWN, ACE UP-DOWN. The last two are also available with a 100-230V connection.
The EASY-LOCK comes standard with this fixture. The cable length to this fixture is 60cm.
Available in different colors: Dark Grey, Corten, White, Rose Silver and Flat Grey. High quality FCBV coating. Combines well with other fixtures in the same color.
ACE is part of a concept. This means that there are multiple products with the same design so you can choose one look for your garden. Other products from the ACE concept are: ACE HIGH, ACE DOWN, ACE UP-DOWN. The last two are also available with a 100-230V connection.
The EASY-LOCK comes standard with this fixture. The cable length to this fixture is 60cm.
Specs
Art. nr.
10202350
Application
Border, Driveway, Path
Mounting depth (inch)
0
Recessed depth (mm)
0
CRI
91
Color
DarkGrey
EAN code
8717051003523
Energy label
G

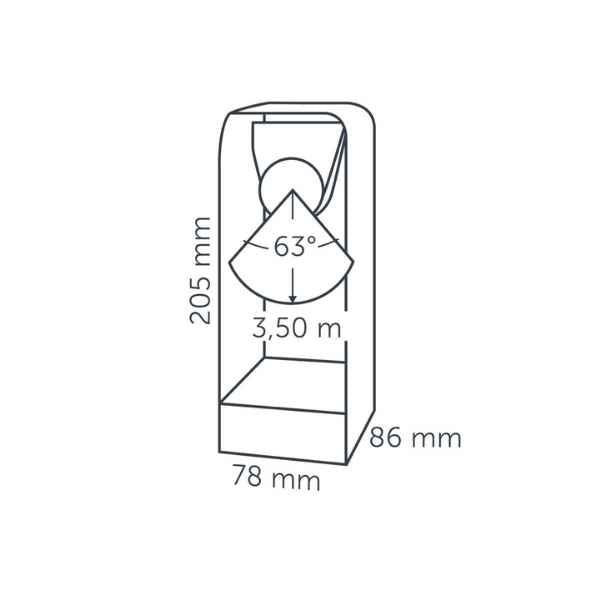

Height (inch)
8.0709
Height (mm)
205
IP class
55
Length (inch)
3.3858
Length (mm)
86
Light direction
Adjustable
Types of Light
Direct
Efficiency (Lumen/Watt)
58
Net luminous flux (Lumen)
173
Power [W]
3
Processing
Concrete, Grass, Gravel, Natural stone, Soil, Wood
Article group
Path lights
Voltage
12 volt
VA value
5.3
Width (inch)
3.0709
Width (mm)
78
Color temperature
3000
Material finishing/coating
FCBV
Luminous intensity [Cd]
196
Power factor
0.57
Installation instructions
Use screws to mount on a hard surface or a stake to install in soft ground (both included). Watch the instructional videos on the installation tips page for information on installing the in-lite system.
