Description
in-lite ACE Corten - 10202361 from in-lite built for clean, modern outdoor lighting systems.

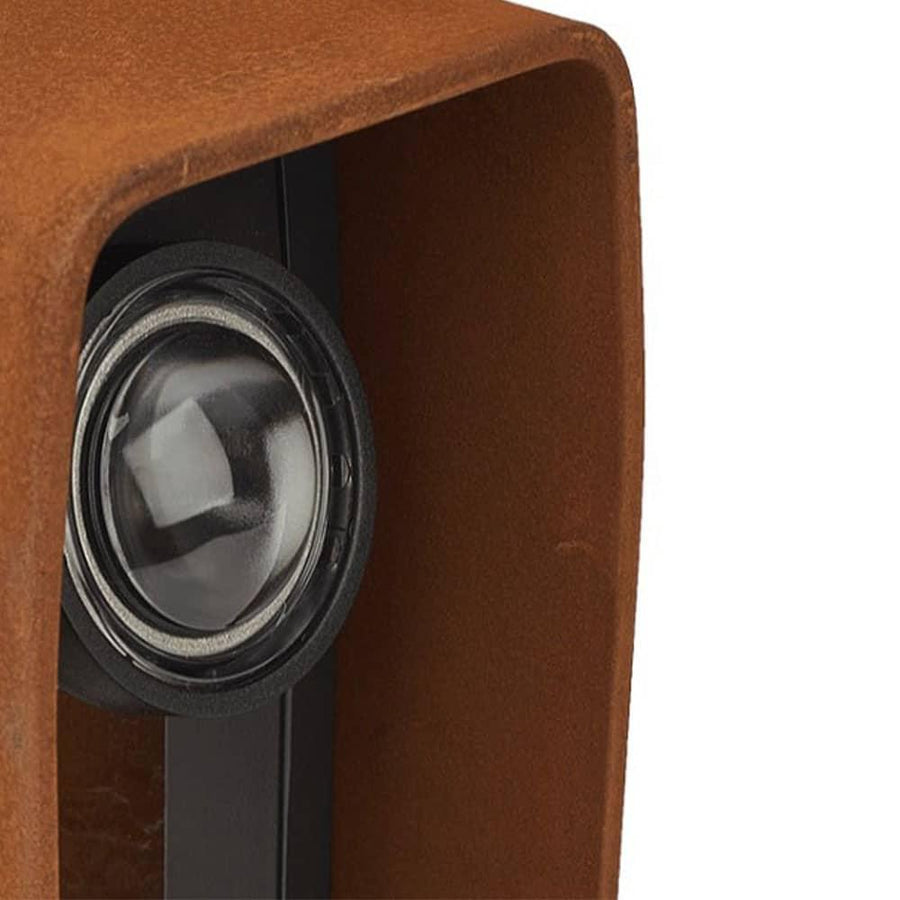

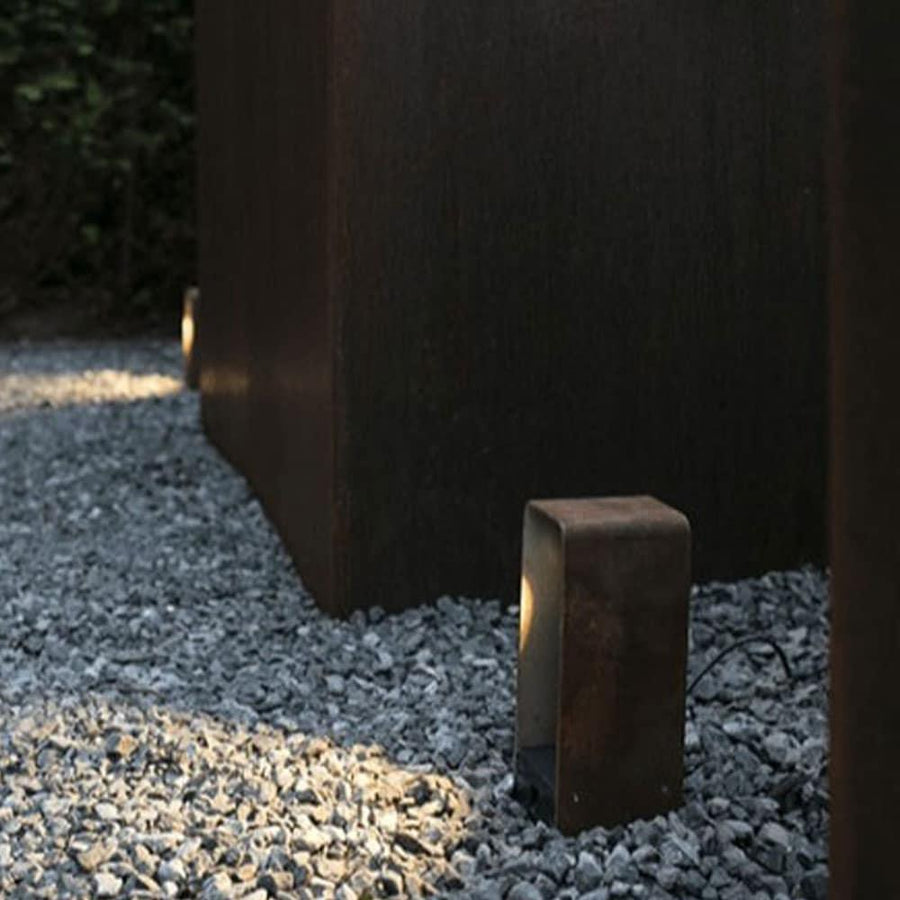

Path light ACE provides a soft light that can be used to illuminate a path or driveway. The light source in the fixture can be tilted. This makes the ACE perfect for highlighting a border, fence or other specific yard features.
- Produces an attractive soft light
- Designed for illuminating a driveway or walkway
- Tilting light source

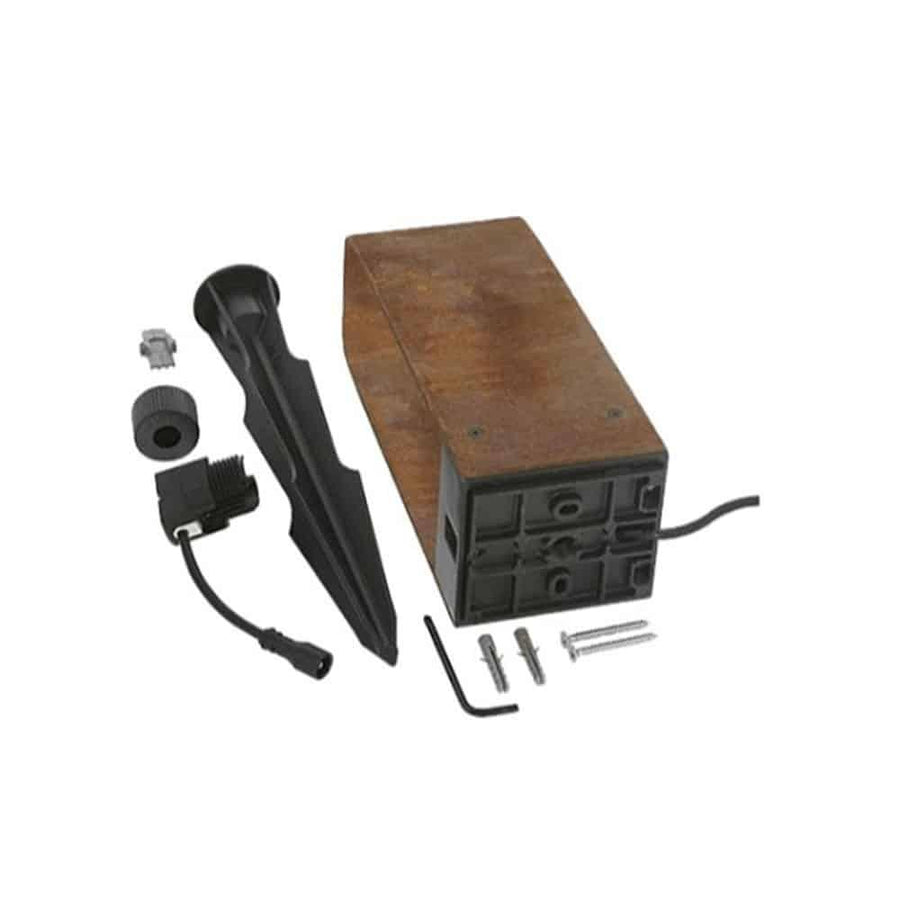

IN THE PACKAGE: INCLUDED IN PACKAGE
- 1x EASY LOCK
- 60 cm Fixture cable
- 1x Ground pin
- 2x Nylon plug
- 2x Screw
- 1x Torx wrench
Product Details
Path light ACE provides a string light suitable for illuminating a path or driveway. The light source in the fixture is tiltable. This also makes ACE suitable for highlighting the border, fence or other specific garden elements.
Available in different colors: Dark Grey, Corten, White, Rose Silver and Flat Grey. High quality FCBV coating. Combines well with other fixtures in the same color.
ACE is part of a concept. This means that there are multiple products with the same design so you can choose one look for your garden. Other products from the ACE concept are: ACE HIGH, ACE DOWN, ACE UP-DOWN. The last two are also available with a 100-230V connection.
The EASY-LOCK comes standard with this fixture. The cable length to this fixture is 60cm.
Available in different colors: Dark Grey, Corten, White, Rose Silver and Flat Grey. High quality FCBV coating. Combines well with other fixtures in the same color.
ACE is part of a concept. This means that there are multiple products with the same design so you can choose one look for your garden. Other products from the ACE concept are: ACE HIGH, ACE DOWN, ACE UP-DOWN. The last two are also available with a 100-230V connection.
The EASY-LOCK comes standard with this fixture. The cable length to this fixture is 60cm.
Specs
Art. nr.
10202361
Application
Border, Driveway, Path
CRI
91
Color
Corten
EAN code
8717051006029
Energy label
G
Height (inch)
8.0709
Height (mm)
205
IP class
55
Length (inch)
3.3858
Length (mm)
86
Light direction
Adjustable
Types of Light
Direct
Efficiency (Lumen/Watt)
58
Net luminous flux (Lumen)
173
Power [W]
3
Processing
Concrete, Grass, Gravel, Natural stone, Soil, Wood
Article group
Path lights
Voltage
12 volt
VA value
5.3
Width (inch)
3.0709
Width (mm)
78
Color temperature
3000
Material finishing/coating
FCBV
Luminous intensity [Cd]
196
Power factor
0.57
Installation instructions
Use screws to mount on a hard surface or a stake to install in soft ground (both included). Watch the instructional videos on the installation tips page for information on installing the in-lite system.
