Description
Accusys T-Share-LTO 11-Bay Tower RAID System with LTO Drive - Final Sale/No Returns
LTO Integrated 11 Bay RAID Shared Storage, Editing and Archiving, Media Post from Ingest to Delivery
Key Features
System Type: 11-bay Tower RAID system + LTO Drive
Interface: Thunderbolt 3 * 4, PCIe 3.0 *1
Data Transfer Rate: Thunderbolt 3 : 40 Gb/s, PCIe 3.0: 32 Gb/s
Disk Interface: SAS / SATA * 12
Disk Type: 3.5" / 2.5" / HDD / SSD
Hardware RAID (supports Raid 0, 1, 5, 10, JBOD)
Cache Memory: 2G DDRlll 1866 with ECC-protected
JBOD Expansion: JBOD * 3
T-Share Expansion: Thunderbolt 3 * 8, JBOD * 6
Shared by multiple users via Thunderbolt
Optimized to support multi stream 4K and 8K workflows
3 Year limited warranty
Made in Taiwan
2-in-1 Thunderbolt 3 Storage + LTO 7
*LTO 8 edition is also available
T-Share LTO combines 11-bay disk array and 1 LTO drive in a tower system. On-line editing and off-line archiving can all be done with one single box.
No more version confusion, since you can do color grading while foley artists, VFX editors and sound mixers are doing their part on the same file centrally stored in T-Share LTO. For delivery, it has never got easier, simply save the finished product into the LTO that is integrated with your central RAID storage.
Shared by a Team
T-Share LTO has 4 Thunderbolt 3 ports and 1 PCIe port for you to configure it as Storage Area Network (SAN) when integrated with SAN software. It allows for 4 Thunderbolt clients and 1 PCIe client to share content. This works perfectly well for small editing groups.
Or, you can simply partition the storage array into several storage volumes as direct attached storage (DAS) with immense capacity.
Ever Expending

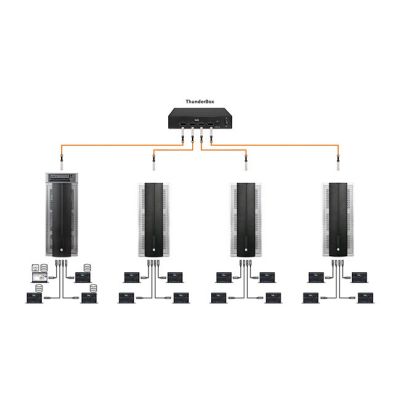

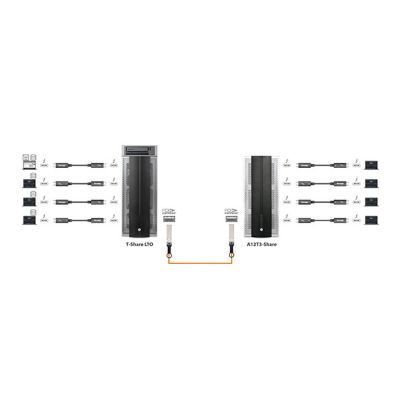

You can connect T-Share LTO and 1 A12T3-Share via PCIe ports to create a 23-bay RAID& 1 LTO drive, allowingup to 8 clients to share the data pool. With the help of Thunderbox, you can connectone T-Share LTO and there A12T3-Share to generate a workspaceforno more than 16 clients to work concurrently on files that are centrally stored.
LTO Tape
LTO tape has numerous advantages. Wanna keep your data safe and organized? You’ll be satisfied with what T-Share LTO brings you.
Long-term Archive: Kept in appropriate conditions, LTO tape has 30 years shelf life.
File System Compatibility: LTO tape is written in LTFS format, which is compatible with both Mac and Windows.
Cost-effective: In terms of space and expenses, moving your data to LTO tape surely can make room and save you money compared with HDD or SSD.
Data Safety: LTO Tape is less sensitive to mechanical damage, and a lot less vulnerable than HDD or SSD.
Technical Specifications
System Type: 11-bay Tower RAID system + LTO Drive
InterfaceThunderbolt: 3 * 4, PCIe 3.0 *1
Data Transfer Rate: Thunderbolt 3 : 40 Gb/s, PCIe 3.0: 32 Gb/s
Disk Interface: SAS / SATA * 12
Disk Type: 3.5" / 2.5" / HDD / SSD
RAID Level: 0, 1, 5, 6, 0+1, JBOD
Cache Memory: 2G DDRlll 1866 with ECC-protected
JBOD Expansion: JBOD * 3
T-Share ExpansionThunderbolt: 3 * 8, JBOD * 6
Dimensions: 369 x 175mm x 475mm
Weight: 18.6 kg
RAID Controller Functions
Online RAID Set Expansion and RAID LEVEL Migration
Online bad block data recovery and reallocation
Online disk scrubbing with data refresh and parity
Disk health monitorning by S.M.A.R.T
Array Roaming and Drive Traveling
Mirror Snapshot for fast backup and restore
Disk Lag Proof Technology to guarantee disk timely response
Equalization Mode to smooth the performance of sequential I/Os and reduce large fluctuation
Management
Java-based RADIGuard X GUI
Event log saving in text file for quick trobleshooting
Event notification by email (SMTP)
LED indicator for RAID & disk drives status in front
400W (Single or Redundant). 110V~240V power supply
Two 12cm x 12 cm Fan with Smart Fan Control feature
