Description
Accusys Gamma 8 External Thunderbolt 8 Bay RAID System
Designed forrich media and post-production professionalswith Performance and Capacity through the power of Thunderbolt 3
Powerful
Imagine the power of Thunderbolt 3 harnessed in a transportable, hardware RAID, 8-bay storage solution offering massive capacity and unprecedented performance.Gamma 8 offers two Thunderbolt 3 ports, a SAS expander port, daisy-chaining capabilities and reaches performance levels of up to 2600 MB/s. Gamma 8 is the definitive storage solution for 4K workflow and beyond.
Expand as You Need

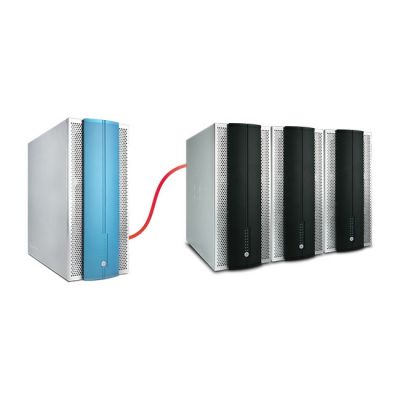

When your work space needs more than what a tower can offer, you can easily expand it with up to 3 JBODs - meaning the capacity can go up to 448 Terabytes if necessary (by using 14TB HDD).
2600MB/s for 4K workflow
Gamma 8 deploys the latest Thunderbolt 3 technology allowing its users to reach blazing transfer rates up to 2600 MB/s – enough to effortlessly handle and expedite large file workflows.
Bring It All Together
With the integration of Daisy Chain technology, users can connect up to six devices to simultaneously take advantage of the blazing transfer speeds of Thunderbolt 3.
Technical Specifications
System Type: 8-bay Tower RAID system
Interface: Thunderbolt 3 * 2
Data Transfer Rate: Thunderbolt 3 : 40 Gb/s
Disk Interface: SAS / SATA * 8
Disk Type: 3.5" / 2.5" / SSD
RAID Level: 0, 1, 5, 6, 0+1, JBOD
Cache Memory: 2G DDRlll 1866 with ECC-protected
JBOD Expansion: JBOD * 3
Operating Humidity : 5% ~ 85%, Non-condensing
Storage Humidity: 5% ~ 95%
RAID Controller Functions
Online RAID Set Expansion and RAID LEVEL Migration
Online bad block data recovery and reallocation
Online disk scrubbing with data refresh and parity
Disk health monitorning by S.M.A.R.T
Array Roaming and Drive Traveling
Mirror Snapshot for fast backup and restore
Disk Lag Proof Technology to guarantee disk timely response
Equalization Mode to smooth the performance of sequential I/Os and reduce large fluctuation
Management
Java-based RADIGuard X GUI
Event log saving in text file for quick trobleshooting
Event notification by email (SMTP)
LED indicator for RAID & disk drives status in front
400W (Single or Redundant). 110V~240V power supply
Two 12cm x 12 cm Fan with Smart Fan Control feature

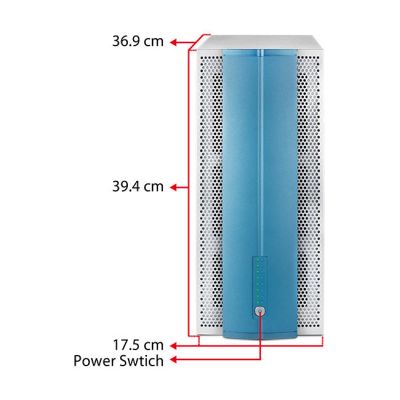

Dimensions: L: 369mm, W: 175mm, H: 394.6mm
Weight: 15.2 kg
