Accusys Gamma 12 External Thunderbolt 12 Bay RAID System
Designed forrich media and post-production professionalswith Performance and Capacity through the power of Thunderbolt 3
Powerful
With hardware RAID, 12-bay,delivering not only the raw speed you need, but also the sustained transfer rates to ensure hiccup-free processing and playback of high-datarate content. Gamma 12 deploys two Thunderbolt™ 3 ports, editing two streams of 4K DPX (4096 x 3112 @24p) at up to a blistering 2600 MB/s. Plus, you can expand as much as you need by creating any number of disks in JBOD configuration, or by daisy-chaining devices.

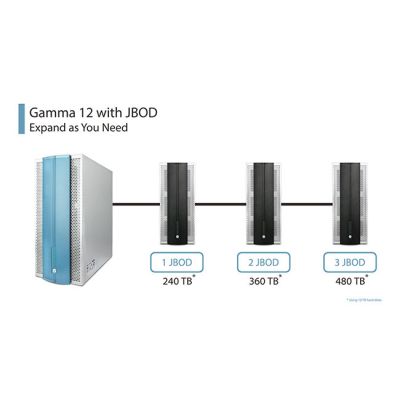

Expand as You Need
When your team needs more than what one tower can offer, you can easily add up to 3 JBODs - up to a whopping 672TB! (Using 14TB Hdd).
2600MB/s for 8K workflow
The latest Thunderbolt™ 3 connectivity, with 40 Gb bandwidth, reaches up to 2600 MB/s transfer speeds. This works perfectly for solo editing without lagging or hiccups.

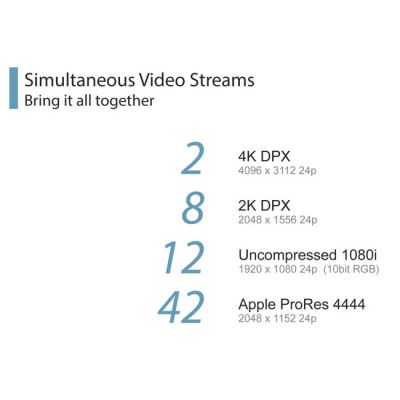

Bring It All Together
With the integration of Daisy Chain capability, users can connect up to six devices, to simultaneously take advantage of the blazing transfer speeds of Thunderbolt 3™.
45 dB - Quiet as the Night
Whisper-quiet at only 45dB, Gamma12 reduces fatigue in the workplace.
Technical Specifications
System Type: 12-bay Tower RAID system
Interface Thunderbolt: 3 * 2
Data Transfer Rate: Thunderbolt 3 : 40 Gb/s
Disk Interface: SAS / SATA * 12
Disk Type: 3.5" / 2.5" / SSD
RAID Level: 0, 1, 5, 6, 0+1, JBOD
Cache Memory: 2G DDRlll 1866 with ECC-protected
JBOD Expansion: JBOD * 3
Operating Humidity : 5% ~ 85%, Non-condensing
Storage Humidity: 5% ~ 95%
RAID Controller Functions
Online RAID Set Expansion and RAID LEVEL Migration
Online bad block data recovery and reallocation
Online disk scrubbing with data refresh and parity
Disk health monitorning by S.M.A.R.T
Array Roaming and Drive Traveling
Mirror Snapshot for fast backup and restore
Disk Lag Proof Technology to guarantee disk timely response
Equalization Mode to smooth the performance of sequential I/Os and reduce large fluctuation
Management
Java-based RADIGuard X GUI
Event log saving in text file for quick trobleshooting
Event notification by email (SMTP)
LED indicator for RAID & disk drives status in front
400W (Single or Redundant). 110V~240V power supply
Two 12cm x 12 cm Fan with Smart Fan Control feature
Dimensions: L: 369mm, W: 175mm, H: 394.6mm
Weight: 15.2 kg
