Description
Accusys ExaSAN LTO - RAID + LTO7 Solution
RAID + LTO7
On-line Editing + Off-line Archiving

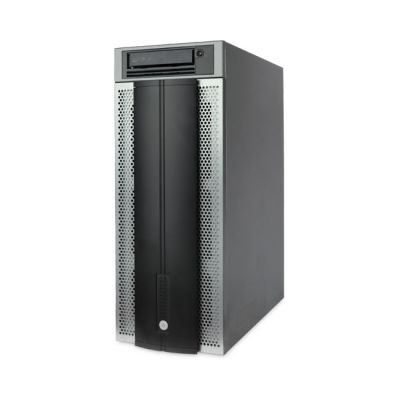

ExaSAN LTO combines 11-bay Disk Array and one LTO drive in single tower system. Hi-res media editing works on hi-speed disk array volume and archiving finished media out to LTO tape for long term backup, all works are done in a box.
Just connect to a computer with a PCIe port
Easy to install: Just insert a PCIe HBA into a computer, connect to storage with PCIe cable and install driver, all done. Accusys provides all necessary parts.
Key Features
Desktop PCIe3.0 RAID system
Throughput up to 2500MB/s
Eleven SAS/SATA drive slots; hot-swappable drive tray support 2.5”/3.5” HDD and SSD
RAID Level: 0, 1, 5, 6, 0+1, JBOD
JBOD Expansion: JBOD * 3
One LTO7 tape drive, 6 TB native (up to 15TB compressed) storage capacity per tape cartridge, up to 300 MB/s data transfer rate, reads and writes to both LTO6 & 7 tapes, reads LTO5 tapes, LTO tape has a 30+ year shelf life.
Technical Specifications
RAID Controller: LSI ROC, 2GB DDR3 RAM
Host Port: QSFP PCIe3.0
Drive Bays: Eleven 2.5" or 3.5" HDDs or SSDs
LTO Drive: Integrated LTO7 tape drive
System Requirements: Windows, Mac, Linux
Dimensions: 369 x 175 x 457 mm (14.5 x 6.9 x 18 inches)
Weight: 17 kg, 37 lbs
What’s in the box?
One LTO7 data tape
One cleaning tape
2M QSFP cable
Z2M HBA card
Power cord
What’s Included
1x LTO7 data tape
1x Cleaning tape
1x 2M QSFP cable
1x Z2M HBA card
1x Power cord
