Description

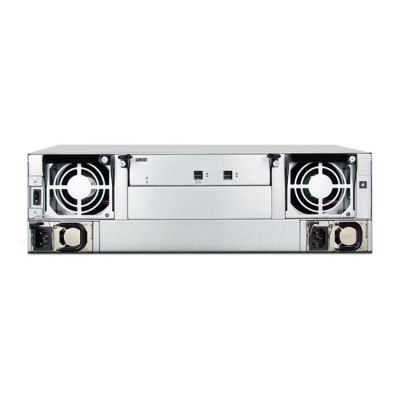

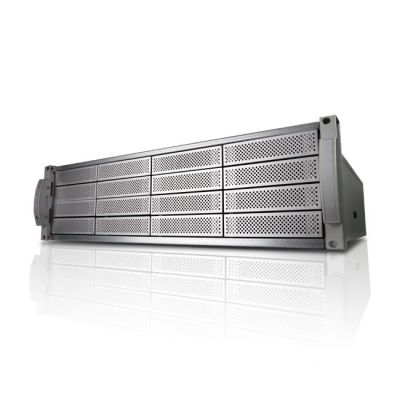

Accusys A16S3-PS ExaSAN 16-Bay Rackmount RAID Storage
The ultimate ExaSAN 16 Bay Rackmount Raid Storage
Powerful
With support for 16-bays of both SAS and SATA SSD/HDD and performance speeds of over 2500MB/s (read) and 2100 MB/s (write) the A16S3-PS proves to be both powerful and versatile enough to handle most tasks associated with 4K editing software and storage.
Lower cost less complexity
The A16S3-PS is based on PCIe3.0 technology offering both impressive performance and capacity, which is why production companies select ExaSAN to avoid high costs and to avoid the complexities associated with more traditional DAS and SAN solutions.
Performance
U to approximately 2500 MB/s
Max. Capacity: 224TB
Key Features
16 Bay, maximum 3 JBOD
Compatible with C1M, PCIe to Thunderbolt converter
Supports RAID Level 0, 1, 5, 6, 10, JBOD
PCIe 3.0 32 Gb bandwidth
Compatible with 3.5” and 2.5” SATA/SAS enterprise HDD
PCIe SAN ready
Redundant power supply
JBOD Expansion with A16S3-SJ
16 bay enclosure
Mini SAS HD interface
One A16S3-PS RAID system supports up to three A16S3-SJ for storage capacity expansion; the total capacity is 896 TB (fully loaded with 14TB HDD)
Compatible with 3.5” and 2.5” SATA/ SAS enterprise HDD
Redundant power supply
PCIe SAN ready
Redundant power supply
5000MB/s Ultra Speed Double DAS
For users who seek extreme speed, Accusys ExaSAN offers the Z2D HBA card. With the A16S3-PS 16-bay PCIe3.0 RAID system, the total throughput achieved can be up to 5000MB/s. Even a single A16S3 can reach 2500MB/s and process multiple video streams.
Technical Specifications
System Type: 16-bay Rackmount RAID system
Host Interface: PCIe 3.0
Data Transfer Rate: 32 Gb/s
Disk Interface: SAS / SATA * 16
Disk Type: 3.5" / 2.5" / SSD
RAID Level: 0, 1, 5, 6, 0+1, JBOD
Cache Memory: 2G DDRlll 1866 with ECC-protected
JBOD Expansion: JBOD * 3
Operating Temperature: 0°C ~ 40°C
Storage Temperature: -20°C~ 70°C
Operating Humidity: 5%~85%, Non-condensing
RAID Controller Functions
Online RAID Set Expansion and RAID LEVEL Migration
Online bad block data recovery and reallocation
Online disk scrubbing with data refresh and parity
Disk health monitorning by S.M.A.R.T
Array Roaming and Drive Traveling
Mirror Snapshot for fast backup and restore
Disk Lag Proof Technology to guarantee disk timely response
Equalization Mode to smooth the performance of sequential I/Os and reduce large fluctuation
Management
Java-based RADIGuard X GUI
Event log saving in text file for quick trobleshooting
Event notification by email (SMTP)
LED indicator for RAID & disk drives status in front
400W (Single or Redundant). 110V~240V power supply
Two 12cm x 12 cm Fan with Smart Fan Control feature
Dimensions: L:567mm, W:447mm, H:131mm
Weight: 19.4kg
