Description
Accusys A12T3-Share 12 Bay Thunderbolt Shareable Storage System
Thunderbolt 3 Shareable Storage
Powerful
A12T3-Share is a 12-bay tower storage array with 4 Thunderbolt 3 host ports. Users can configure the A12T3-Share as a Storage Area Network (SAN) storage pool when integrated with SAN software, or partition the storage array into several storage volumes and benefit from the high performance of Thunderbolt ports as direct attached storage with immense capacity.
Shared by the team

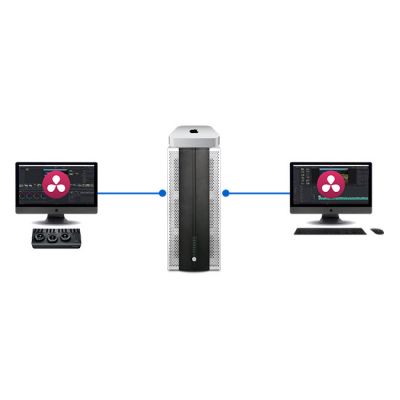

No Thunderbolt to fibre channel adapters necessary, nor is a fibre channel switch required. With 4 Thunderbolt connections, A12T3-Share allows for 4 Thunderbolt clients to share content and reach up to 2600 MB/s transfer speeds, more than ever we could afford to have true collaborative workflows for video editors and any digital content creator; this could work well for small work groups.
Expand as You Need

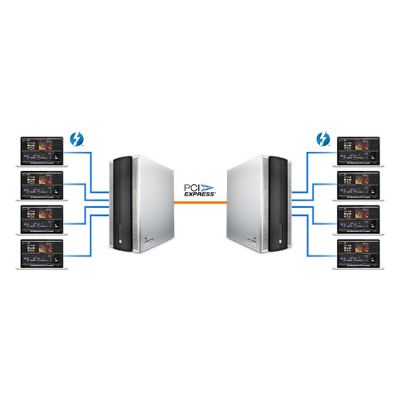

A12T3-Share is equipped with 4 Thunderbolt 3 ports and this can be expanded to 8 ports by pairing two A12T3-Share devices using the T-Share Expansion feature. This allows users to reach storage capacities of over 1 Petabyte (1344TB) of data with connecting extra JBOD systems.
T-Pairing - Doubled Transfer Speeds for Increased Productivity
T-Pairing allows users to double transfer speeds by pairing two Thunderbolt cable connections between workstations and Accusys storage devices. Two Thunderbolt ports can be utilized to connect a new Mac Pro, and with four TB ports available on the A12T3-Share, this allows two users to create dual paths for increased speeds simultaneously. All A12T3-Share devices are pre-installed with Accusys Mac Installer which includes the driver for T-Pairing. Once the driver is installed it will automatically communicate with the A12T3-Share RAID controller for easy configuration.
Technical Specifications
System Type: 12-bay Tower RAID system
Interface: Thunderbolt 3 * 4,PCIe 3.0 *1
Data Transfer Rate: Thunderbolt 3: 40 Gb/s,QSFP : 32 Gb/s
Disk Interface: SAS / SATA * 12
Disk Type: 3.5" / 2.5" / SSD
RAID Level: 0, 1, 5, 6, 0+1, JBOD
Cache Memory: 2G DDRlll 1866 with ECC-protected
JBOD Expansion: JBOD * 3
T-Share Expansion: Thunderbolt 3 * 8, JBOD * 6
RAID Controller Functions
Online RAID Set Expansion and RAID LEVEL Migration
Online bad block data recovery and reallocation
Online disk scrubbing with data refresh and parity
Disk health monitorning by S.M.A.R.T
Array Roaming and Drive Traveling
Mirror Snapshot for fast backup and restore
Disk Lag Proof Technology to guarantee disk timely response
Equalization Mode to smooth the performance of sequential I/Os and reduce large fluctuation
Management
Java-based RADIGuard X GUI
Event log saving in text file for quick trobleshooting
Event notification by email (SMTP)
LED indicator for RAID & disk drives status in front
400W (Single or Redundant). 110V~240V power supply
Two 12cm x 12 cm Fan with Smart Fan Control feature
Dimensions: L: 369mm, W: 175mm, H: 394.6mm
Weight: 15.2 kg
