Description

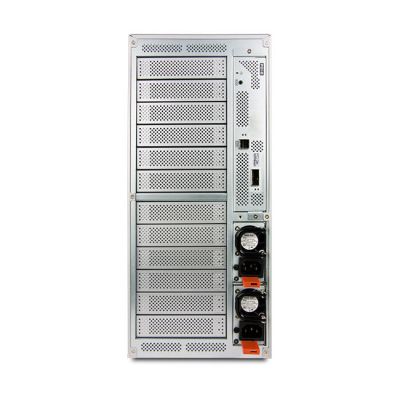

Accusys A12S3-PS ExaSAN PCIe 3.0 RAID System
The ExaSAN PCIe 3.0 RAID Storage for your Desktop
Powerful
A12S3-PS with 12 units of SAS/SATA/SSD HDD support, over 2500MB/s read and 2000 MB/s write performance, making A12S3-PS both powerful yet versatile to handle most tasks associated with 4K editing software and storages.
Lower cost less complexity
A12S3-PS based on PCIe3.0 technology offers both impressive speed and capacity, which is why production companies select ExaSAN to avoid the high cost and complexity associated with more traditional DAS and SAN solution.
Key Features
12 Bay, maximum 3 JBOD
Compatible with C1M, PCIe to Thunderbolt converter
Supports RAID Level 0, 1, 5, 6, 10, JBOD
PCIe 3.0 32 Gb bandwidth
Compatible with 3.5” and 2.5” SATA/SAS/SSD enterprise HDD
PCIe SAN ready
Single or redundant power option (A12S3-PS plus & A12S3-SJ plus)
Performance
Up to approximately 2500 MB/s
Max. Capacity: 168TB
JBOD Expansion with A12S3-SJ
12 Bay enclosure
Mini SAS HD interface
One A12S3-PS RAID system supports up to three A12S3-SJ for storage capacity expansion; the total capacity is 672TB (fully loaded with 14TB HDD)
JBOD Compatible with 3.5” and 2.5” SATA/SAS/SSD enterprise HDD
PCIe SAN ready
4000 MB/s Ultra Speed Double DAS
For users who seek extreme speed, Accusys ExaSAN offers the Z2D HBA Card, striping two RAID systems to double the speed. With A12S3-PS, the 12-bay PCIe3.0 RAID system, the total throughput achieved can be up to 4000 MB/s. Even a single A12S3-PS can get 2500 MB/s and process multiple video streams.
Technical Specifications
System Type: 12-bay Tower RAID system
Host Interface: PCIe 3.0
Data Transfer Rate: 32 Gb/s
Disk Interface: SAS / SATA * 12
Disk Type: 3.5" / 2.5" / SSD
RAID Level: 0, 1, 5, 6, 0+1, JBOD
Cache Memory: 2G DDRlll 1866 with ECC-protected
JBOD Expansion: JBOD * 3
Operating Temperature: 0°C ~ 40°C
Storage Temperature: -20°C~ 70°C
Operating Humidity: 5%~85%, Non-condensing
RAID Controller Functions
Online RAID Set Expansion and RAID LEVEL Migration
Online bad block data recovery and reallocation
Online disk scrubbing with data refresh and parity
Disk health monitorning by S.M.A.R.T
Array Roaming and Drive Traveling
Mirror Snapshot for fast backup and restore
Disk Lag Proof Technology to guarantee disk timely response
Equalization Mode to smooth the performance of sequential I/Os and reduce large fluctuation
Management
Java-based RADIGuard X GUI
Event log saving in text file for quick trobleshooting
Event notification by email (SMTP)
LED indicator for RAID & disk drives status in front
400W (Single or Redundant). 110V~240V power supply
Two 12cm x 12 cm Fan with Smart Fan Control feature
Dimensions: L:369mm, W:175mm, H:394.6mm
Weight: 3.64kg / 30 lbs
