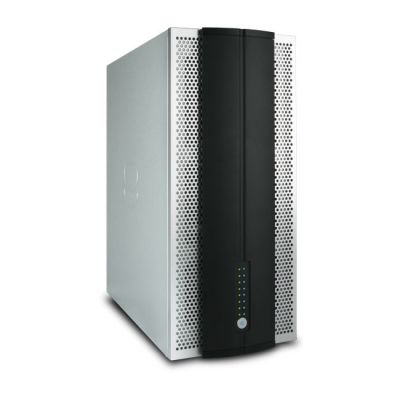

Accusys A08S4-PS 8-Bay PCIe 3.0 Tower RAID System
The Most Flexible Tower Ever, Expand as You Need
Powerful
A08S4-PS, the 8-bay tower of ExaSAN Family, dedicates itself to those who don’t want to spend extra money and time on a second storage. With ExaSAN, you can expand as you need.
Higher Bandwidth, Higher Performance
A08S4-PS uses PCIe 3.0 technology, and can reach up to 1500 MB/s transfer speeds. This works just perfectly for solo editing.
Expand as You Need

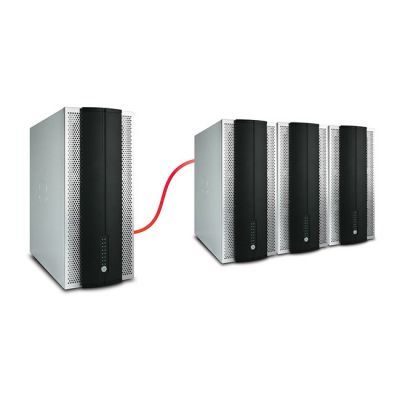

When your work space needs more than what a tower can offer, you can easily expend it with up to 3 JBODs - meaning the capacity can go up to 448 Terabytes if necessary (by using 14TB HDD).
A08S4-PS on Mac
A08S4-PS is compatible with Windows, Linux and MAC. Use C2M adapter to convert PCIe channel to Thuderbolt 3.0, then you are ready to connect it to a MAC device easily.
Technical Specifications
System Type: 8-bay Tower RAID system
Host Interface: PCIe 3.0
Data Transfer Rate: 32 Gb/s
Disk Interface: SAS / SATA * 8
Disk Type: 3.5" / 2.5" / SSD
RAID Level: 0, 1, 5, 6, 0+1, JBOD
Cache Memory: 2G DDRlll 1866 with ECC-protected
JBOD Expansion: JBOD * 3
Operating Temperature: 0°C ~ 40°C
Storage Temperature: -20°C~ 70°C
Operating Humidity : 5%~85%, Non-condensing
RAID Controller Functions
Online RAID Set Expansion and RAID LEVEL Migration
Online bad block data recovery and reallocation
Online disk scrubbing with data refresh and parity
Disk health monitorning by S.M.A.R.T
Array Roaming and Drive Traveling
Mirror Snapshot for fast backup and restore
Disk Lag Proof Technology to guarantee disk timely response
Equalization Mode to smooth the performance of sequential I/Os and reduce large fluctuation
Management
Java-based RADIGuard X GUI
Event log saving in text file for quick trobleshooting
Event notification by email (SMTP)
LED indicator for RAID & disk drives status in front
400W (Single or Redundant). 110V~240V power supply
Two 12cm x 12 cm Fan with Smart Fan Control feature
Dimensions: L:369mm, W:175mm, H:394.6mm
Weight: 13.64kg / 30 lbs
