Description

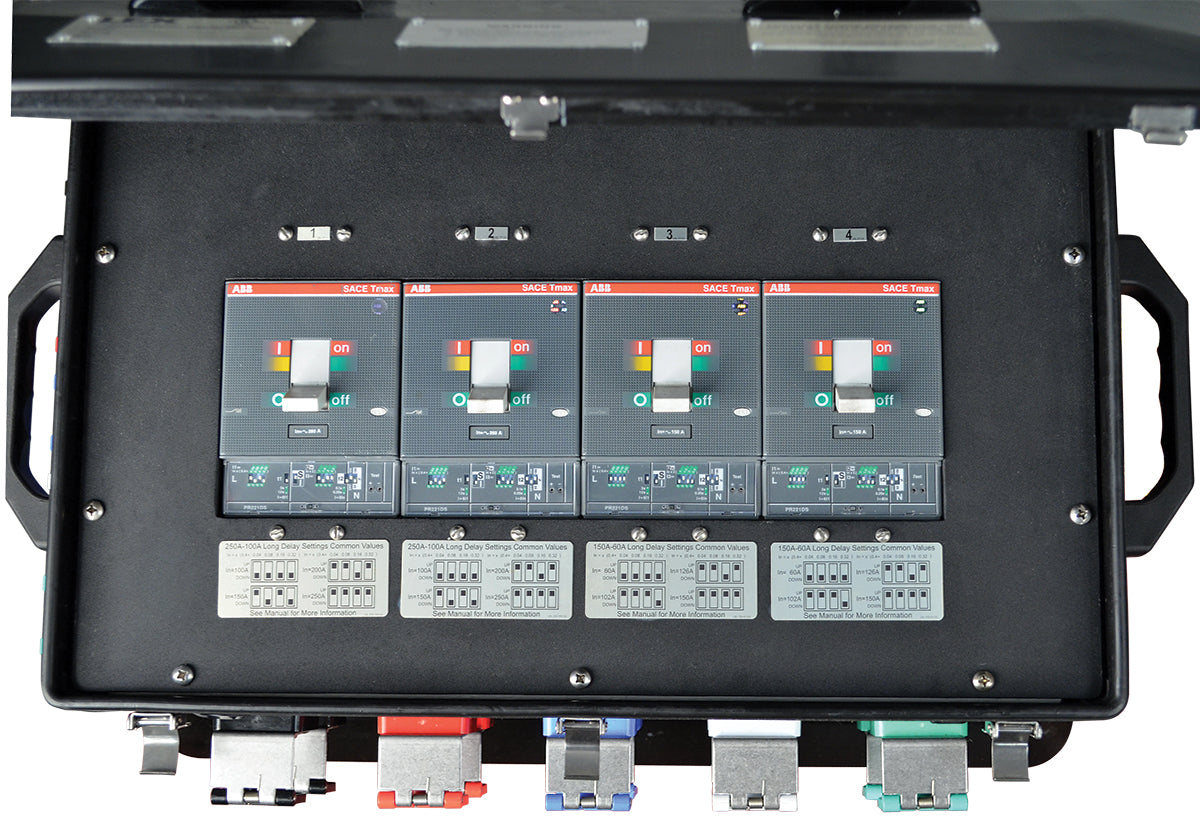

Rubber Enclosure; 800A, 600Y/347 VAC; Panel Mount BRBWG 16 Series Cam Inlets; (4) sets of (5) 16 Series Receptacles, each set on an Adjustable Circuit Breaker: (2) 100A-250 Amps, (2) 60A-150 Amps; Type 3R
- Typical applications include installations requiring a main disconnect for a range of varying downstream electrical loads such as portable kitchens, environmental control units, machinery, motors, tools and more
- Fed directly from a power source, the PowerHOUSE™ Load Master™ portable power distribution box distributes up to 800 Amps of 3 Phase power into (3) circuits
- Each circuit provides adjustable overcurrent protection for the output receptacles to match the specific load requirements.
Markets Served
Outdoor Events, Motion Picture and Television Production
Rating: 800 Amp, 3 Phase (H,H,H,N,G), 4-Pole, 5-Wire, 600Y/347 VAC
Environmental Rating: NEMA Type 3R (Weather Resistant)
Input: (2) sets of (5) 16 Series Cam-type, 400 Amp, single pole, 600V, BRBWG color-coded, panel mount inlets
Feed Thru: None
Main Breaker: None
Output: (4) sets of (5) 16 Series Cam-type, 400 Amp, single pole, 600V, BRBWG color-coded, panel mount outlets
Overcurrent Protection: (2) 60-150 Amp, three pole, adjustable, electronic, branch-rated circuit breaker; (2) 100-250 Amp, three pole, adjustable, electronic, branch-rated circuit breaker
Enclosure Type: Power Station
Dimensions: 27.50"L x 18.50"W x 18.00"H
Weight: 164.0 lbs
Agency Approval: cULus Listed
