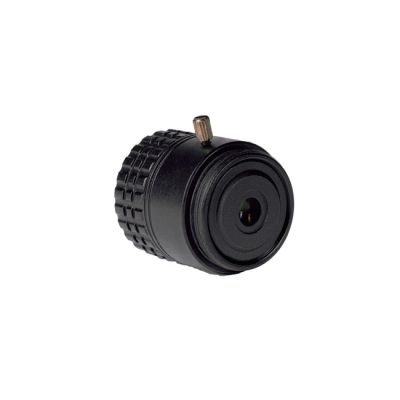

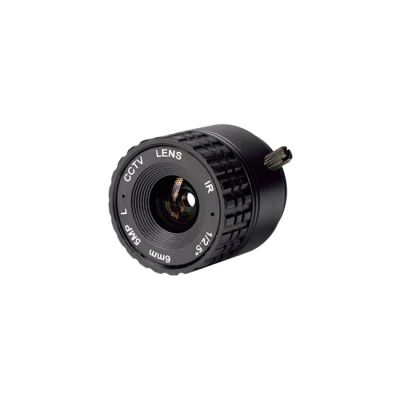

AIDA Imaging CS Mount 6mm Fixed Focal Mega-Pixel Lens
The CS-Mount 6mm Fixed Focal Megapixel Lens from AIDA Imaging is optimized for their Full HD cameras with 1/3” Progressive CMOS sensors.
MAIN FEATURES
Optimized and tuned with HD Camera
Compatible with 1.3 to 5MP Cameras
CS-Mount
1/2.5” Optical Format
Fixed Iris Range
SPECIFICATIONS
OPTICAL Focal Length 6mm F-Stop 6
Focus Operation Manual Iris Operation Fixed
FOV 1/2.5” : 54°
(Horizontal) 1/2.8” : 51°
1/3.2” : 42°
Image Format 1/2.5” Sensor TV Distortion -6% with 1/2.5”Sensor
Physical
Mount Type CS
Operation Temp -4°F – 140°F
Dimension 30m x 22.2mm / 1.18” x 0.87” Weight 28g/ 0.06 lbs
