Description

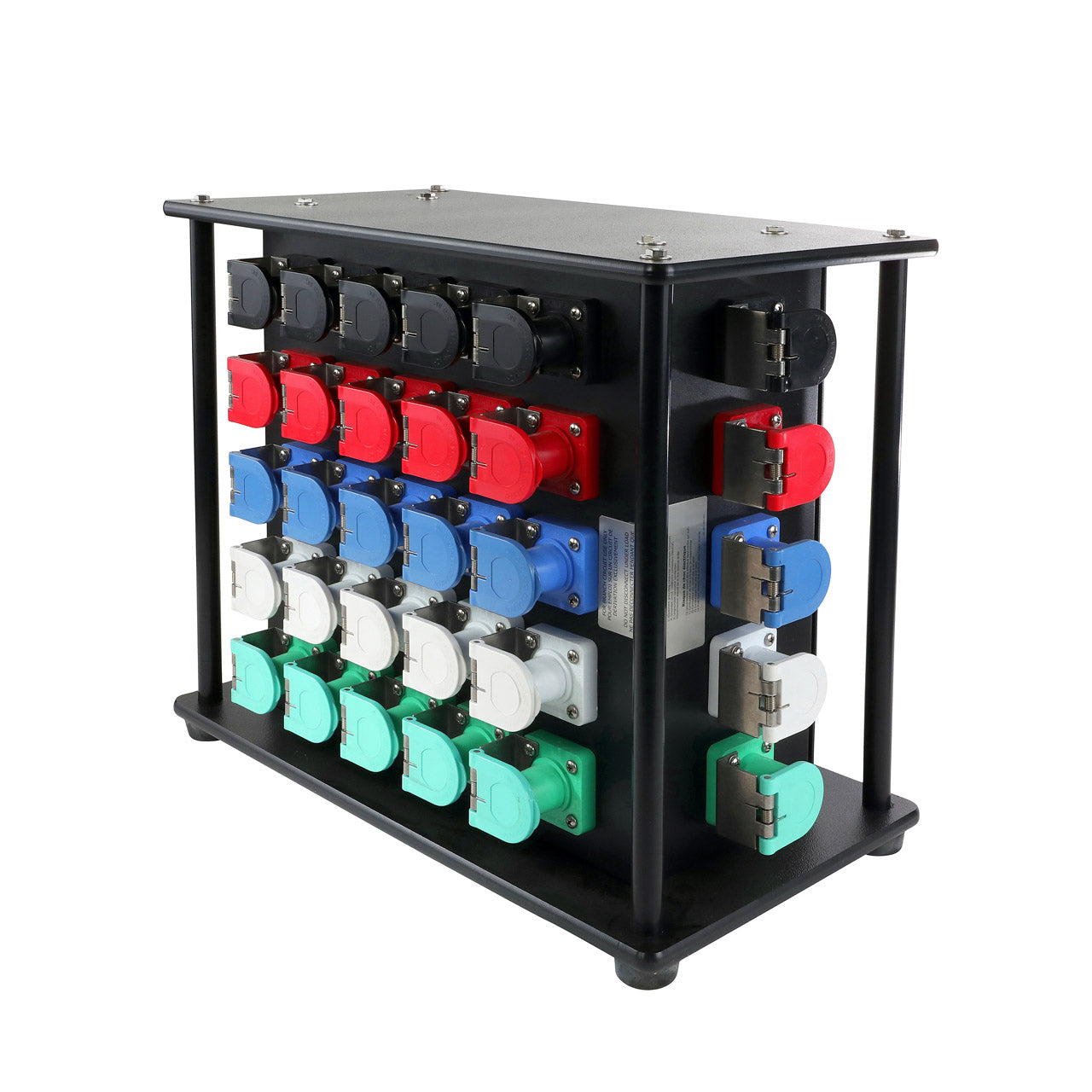

Metal Enclosure, 400A, Panel Mount Cam Inlet, (5) Cam Outlet, Type 1
- This spider box is fed by a generator or panel and splits off five separate sets of 5 wire Cam-type receptacles
- It allows multiple areas on a construction site or multiple film shots to be set up and used as needed over the course of a day
- The runs are not used simultaneously and there is no overcurrent protection
- High-density polyethylene (HDPE) top, bottom and sides provide superior impact and shock resistance
- Compact for convenient portability
- Expedient means of distributing 400 Amp, 3 Phase Cam-type cable runs
Markets Served
Industrial, Motion Picture and Television
Rating: 400 Amp, Three-phase (H,H,H,N,G), 4-pole, 5-wire, 120/208Y VAC, 60 Hz/td>
Environmental Rating: NEMA Type 1 (Indoor Use)
Input: (1) set of (5) 16 Series, 400 Amp, single pole, single wire, 600 VAC, BRBWG color-coded, cover doors, cam-type inlets, panel mount
Feed Thru: None
Main Breaker: None
Output: (5) sets of (5) 16 Series, 400 Amp, single pole, single wire, 600 VAC, BRBWG color-coded, cover doors, cam-type inlets, panel mount
Overcurrent Protection: None
Enclosure Type: Turtle™
Dimensions: 20.50"L x 11.00"W x 18.00"H
Weight: 56.0 lbs
Agency Approval:
