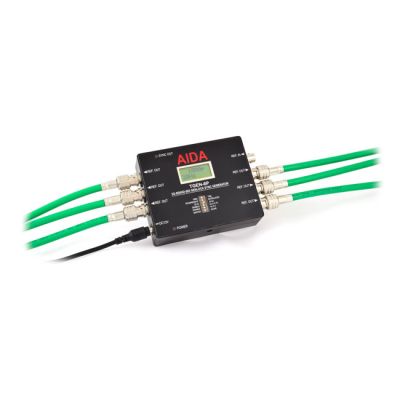

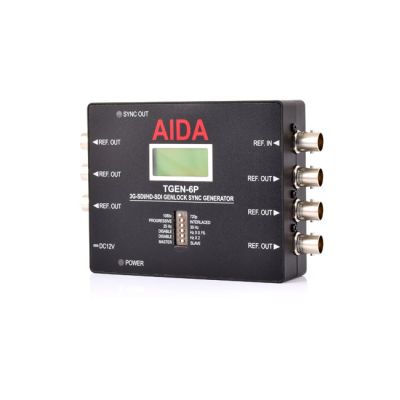

Sync your video signals with the 3G-SDI/HD-SDI Tri-Level Genlock Sync Generator from AIDA Imaging. This genlock sync generator supports all 3G-SDI and HD-SDI signal formats up to 1080 60p, and complies with SMPTE 274M, 296M, and 424M standards to ensure compatibility with other reference devices. Designed for simple operation, it is equipped with dip switches and an LCD screen.
Reference Output
Signal
3G/HD Tri-Level
Supported Formats
1080 60p/59.94p/50p/30p/29.97p/25p
1080 60i/59.94i/50i
720 60p/59.94p/50p/30p/29.97p/25p
Reference Output
6 Channels
Reference Input
Signal
3G/HD Tri-Level
Supported Format
1080 60p/59.94p/50p/30p/29.97p/25p
1080 60i/59.94i/50i
720 60p/59.94p/50p/30p/29.97p/25p
Reference Input
1 Channel
Operational
SMPTE Standards Supported
SMPTE 274, 296M, 424M
Synchronization
Genlock: Tri-Level (Bi-Level SD Sync Not Supported)
Physical
Control
Dip Switches and Text LCD
Power Source
9 to 15 VDC
Power Consumption
6 W at 12 VDC
Operation Temperature
32 to 104°F / 0 to 40°C
Dimensions
5.11 x 2.95 x 1.10" / 130 x 75 x 28 mm
Weight
0.4 lb / 185 g
Packaging Info
Package Weight
1.45 lb
Box Dimensions (LxWxH)
11.1 x 7 x 2.4"
