Description

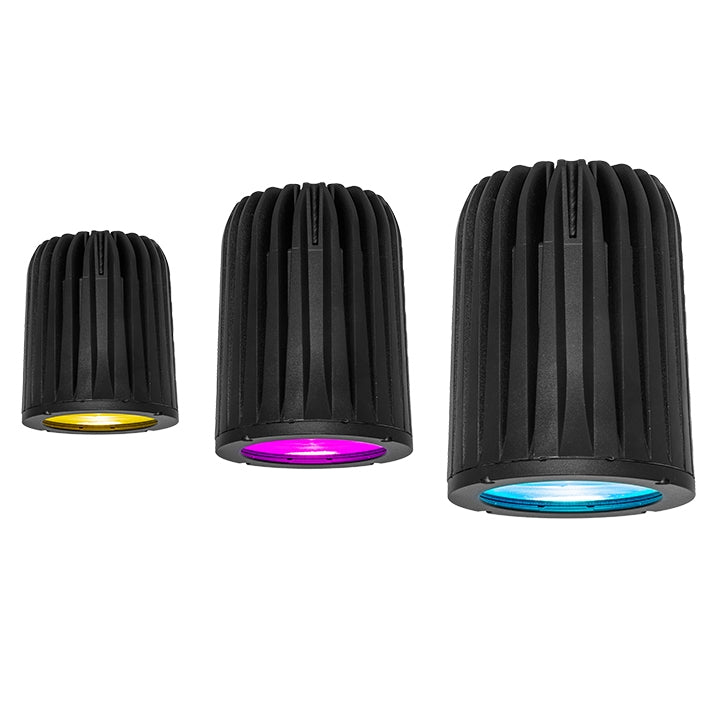

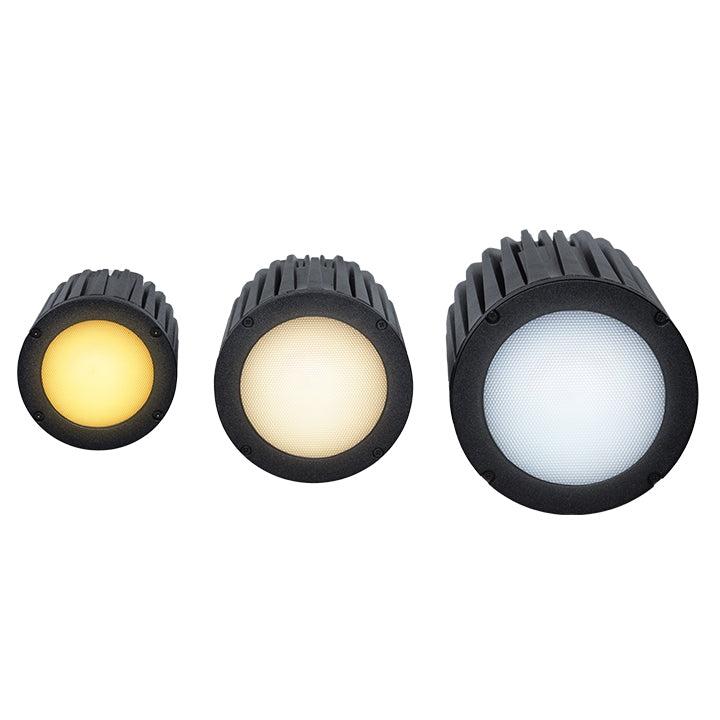

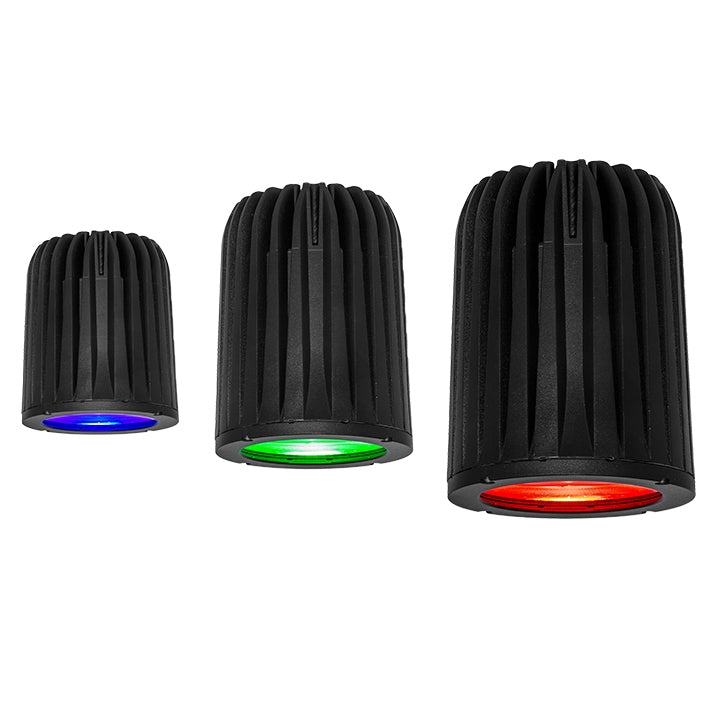

The new Chroma-Q® 2inspire™ PoE family delivers truly flexible lighting into any space, quickly and efficiently. 2inspire™ is a compact, silent, bright fixture in 3 sizes. These installation luminaires deliver studio-grade tuneable white light and pure theatrical quality colours. A holistically designed accessory collection easily mounts each fixture - on a wall, as a pendant, in a ceiling, or from a yoke. Innovative technology minimises deployment costs and maximises efficiency, making every 2Inspire flexible, sustainable, and durable. This fixture features easy connection using power over ethernet.
Details

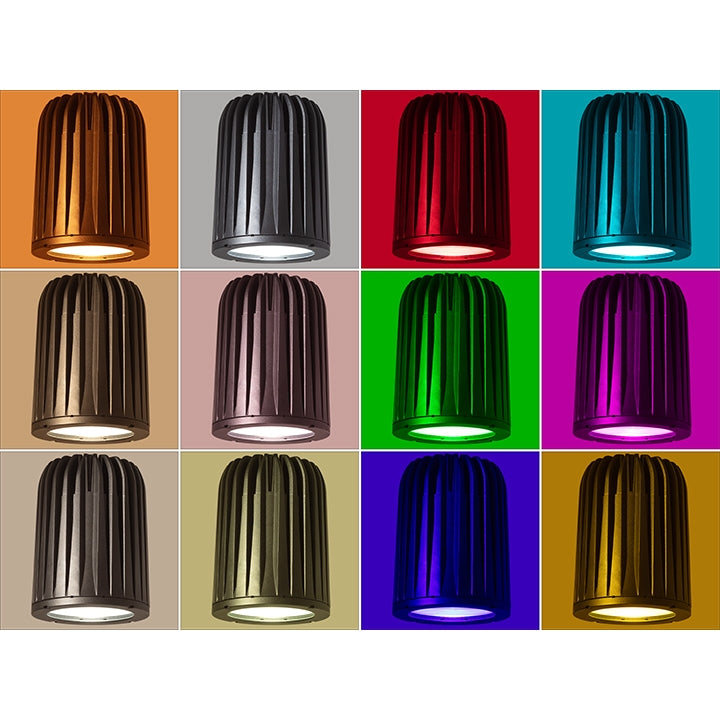

The 2inspire™ PoE family provides a rich, full range of colour and pure tuneable whites. The new Chroma-Q Gen3 LED engine - designed, built, and calibrated in North America – comes from over 20 years of experience at the very cutting edge of LED technology. It delivers 2,400K to 6,500K broadcast grade whites and pure theatrical colours using RGB, WW, and CW LEDs.
Minimising deployment time and cost
Each 2inspire™ PoE requires a single ethernet cable carrying power and data.
Holistic accessory collection

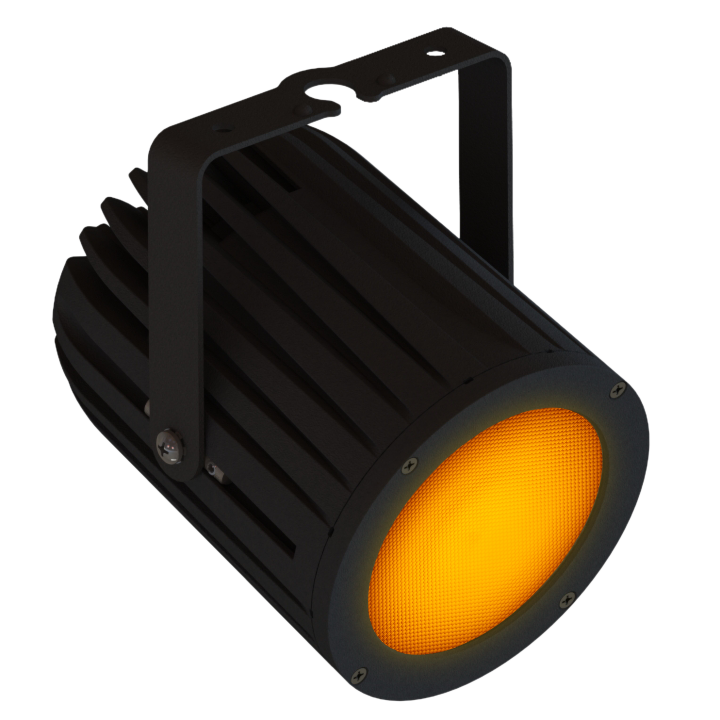

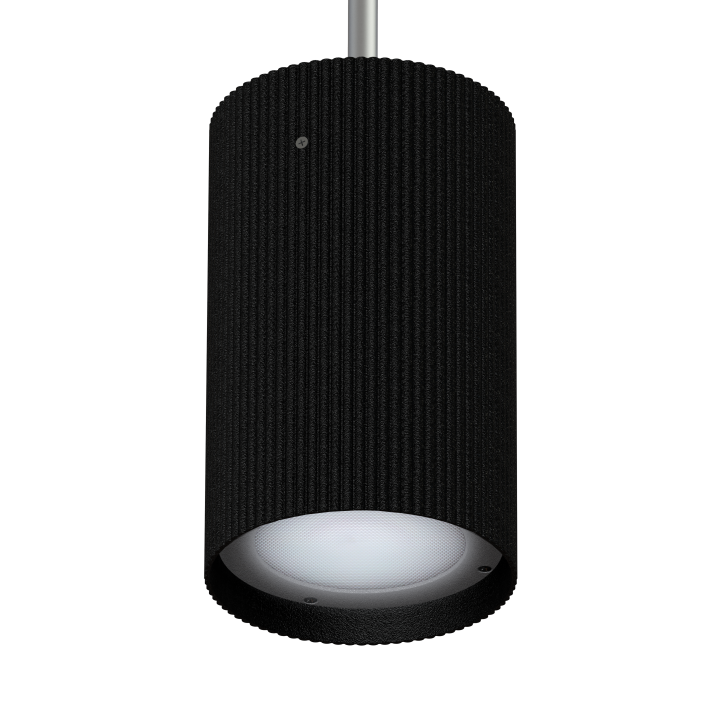

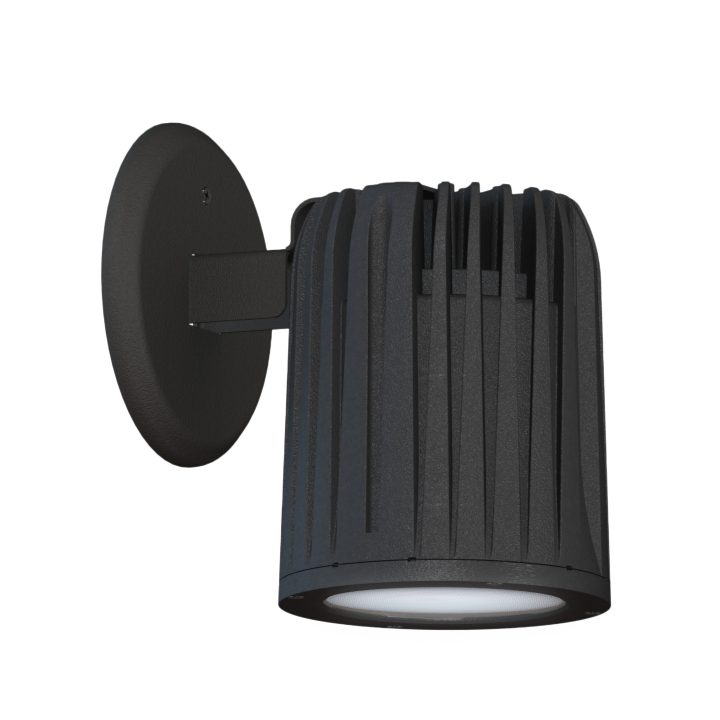

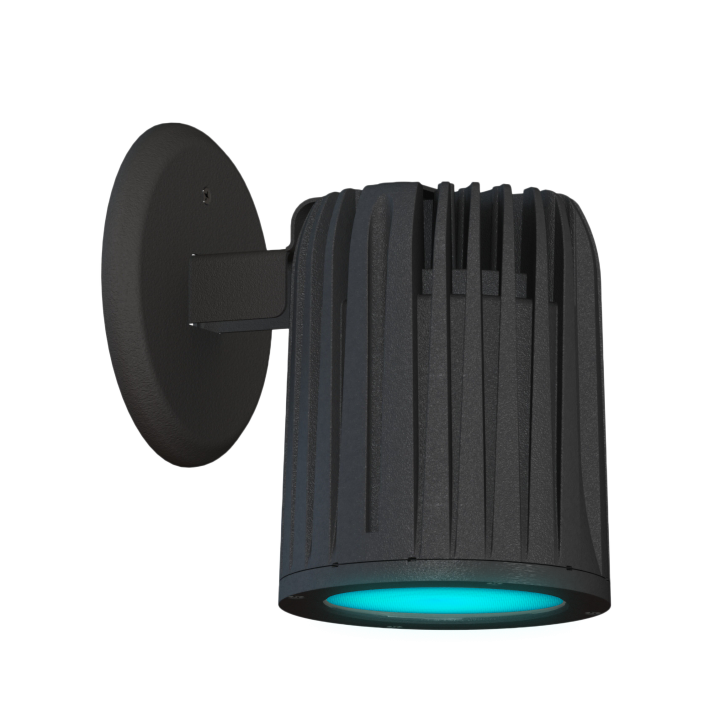

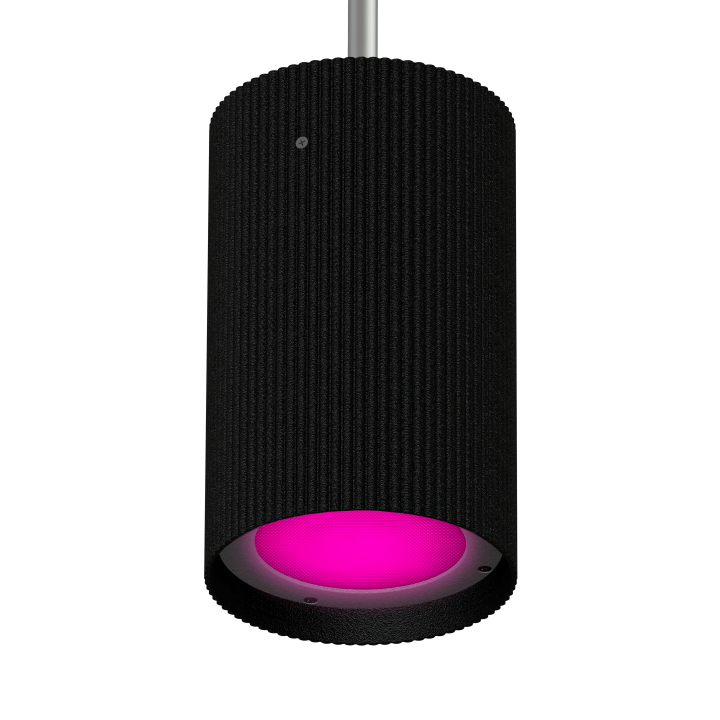

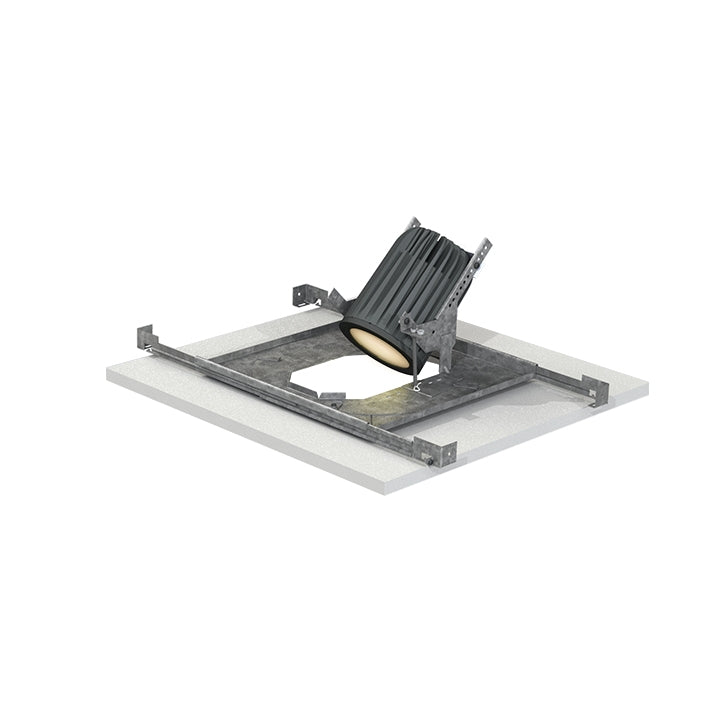

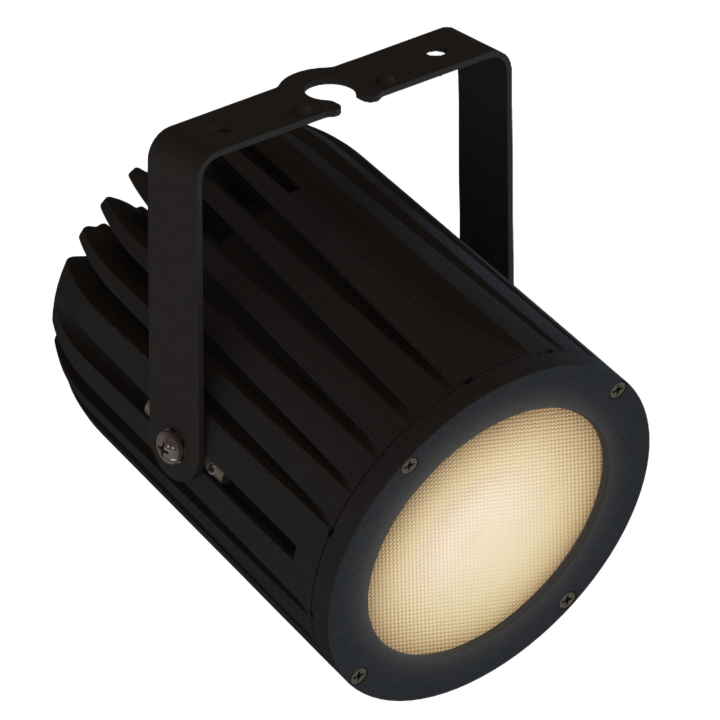

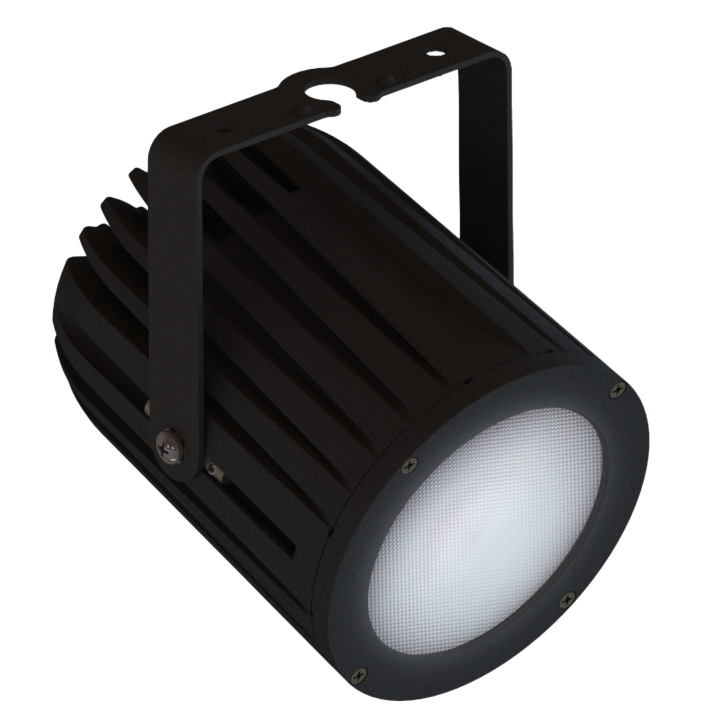

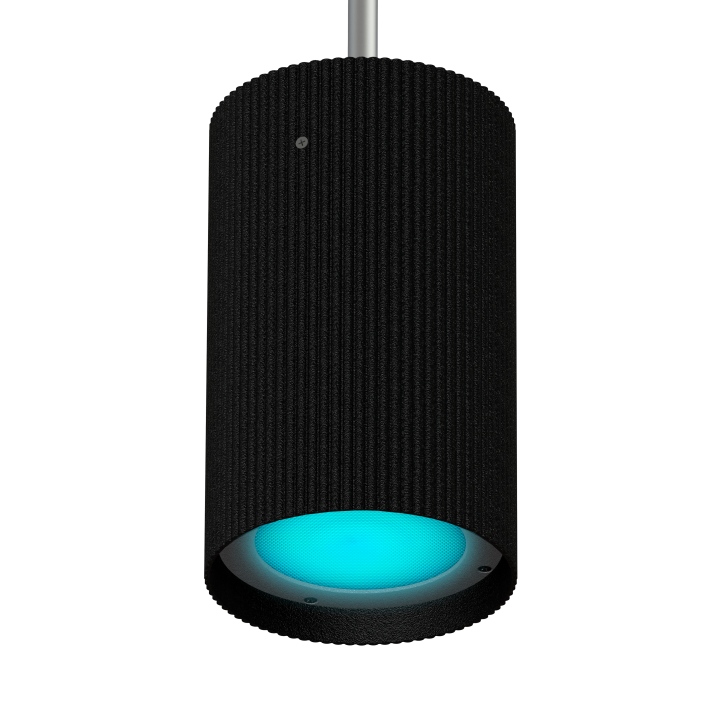

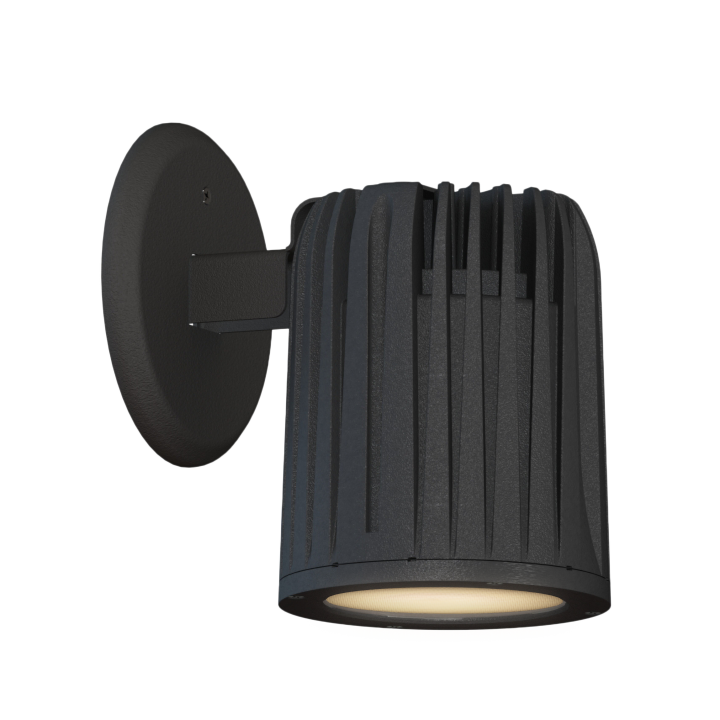

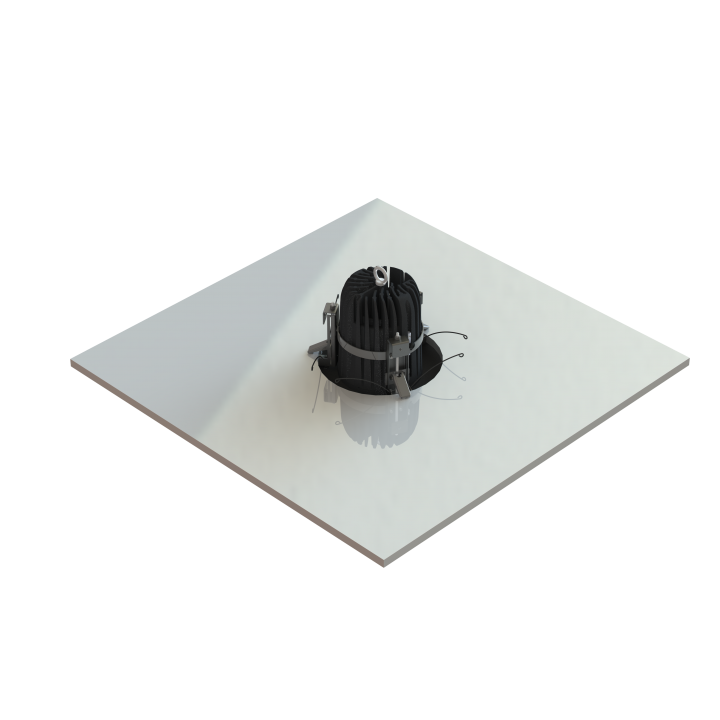

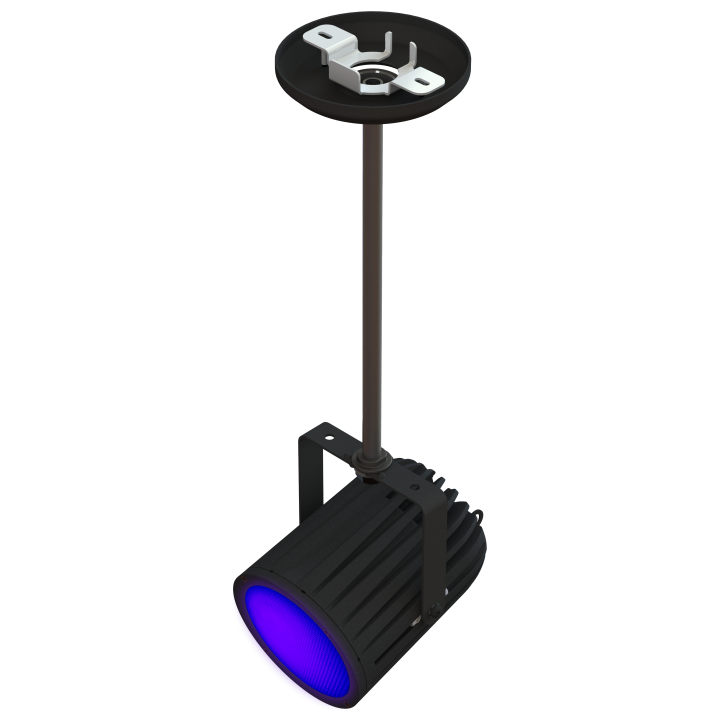

2inspire™ accessories are an intrinsic part of the design. Accessories should not just be an afterthought but an inherent part of the design. One source type, three sizes, four lens options, and over twenty accessories give hundreds of different physical configurations – including wall, pendant, ceiling, and yoke mounting - that can be quickly and easily adjusted on-site.
Precise, consistent control
Control your environment. Seamless color control and theatrical grade dimming of the precisely calibrated 2inspire™ LED engine deliver unmatched creativity. Fully convection-cooled, the 2inspire™ operates silently, even in the most noise-sensitive environments. The super-fast LED driver system ensures no flickering to the eye or high-speed cameras. Engineered for IP20 and IP65 applications is designed for your most creative applications.
Net Dimensions (without fixings):
W: 118mm / 4.7”
H: 118mm / 4.7”
D: 145mm / 5.7”
Net Weight: 1.15kg / 2.5lb
Hot Lumen Output: 1400 Lumens ~PAR 36 size
Beam Angle: 19° (approx.)
Power Consumption: 40W
Total heat dissipation: 137 BTU/hr
Color mixing: RGB WW CW
Color Temp Control: Variable 2400 - 6500K
Tint Control: -2 to +2
Control Protocol: Artnet / sACN / RDM
RDM compliance: Yes
Control Modes: 18
DMX Channels: 1 to 13
Dimming Curve: Inverse square-law, square-law, S-curve
Setting and Addressing: Through Art-Net RDM
Optics: Fully homogenised
Beam Distribution: Symmetrical
Colour Engine: Gen3 ColorSure™ calibrated engine
CCT: 2400-6500K
Colour Gamut Ratio: sRGB=151%; NTSC=107%; AdobeRGB=112%; DCI-P3=112%; REC.2020=80%
CRI: >90
TLCI: >90
IES TM-30 Rf: >90
TM-30 Rg: <100 to 103
Lamp Life:
