Description

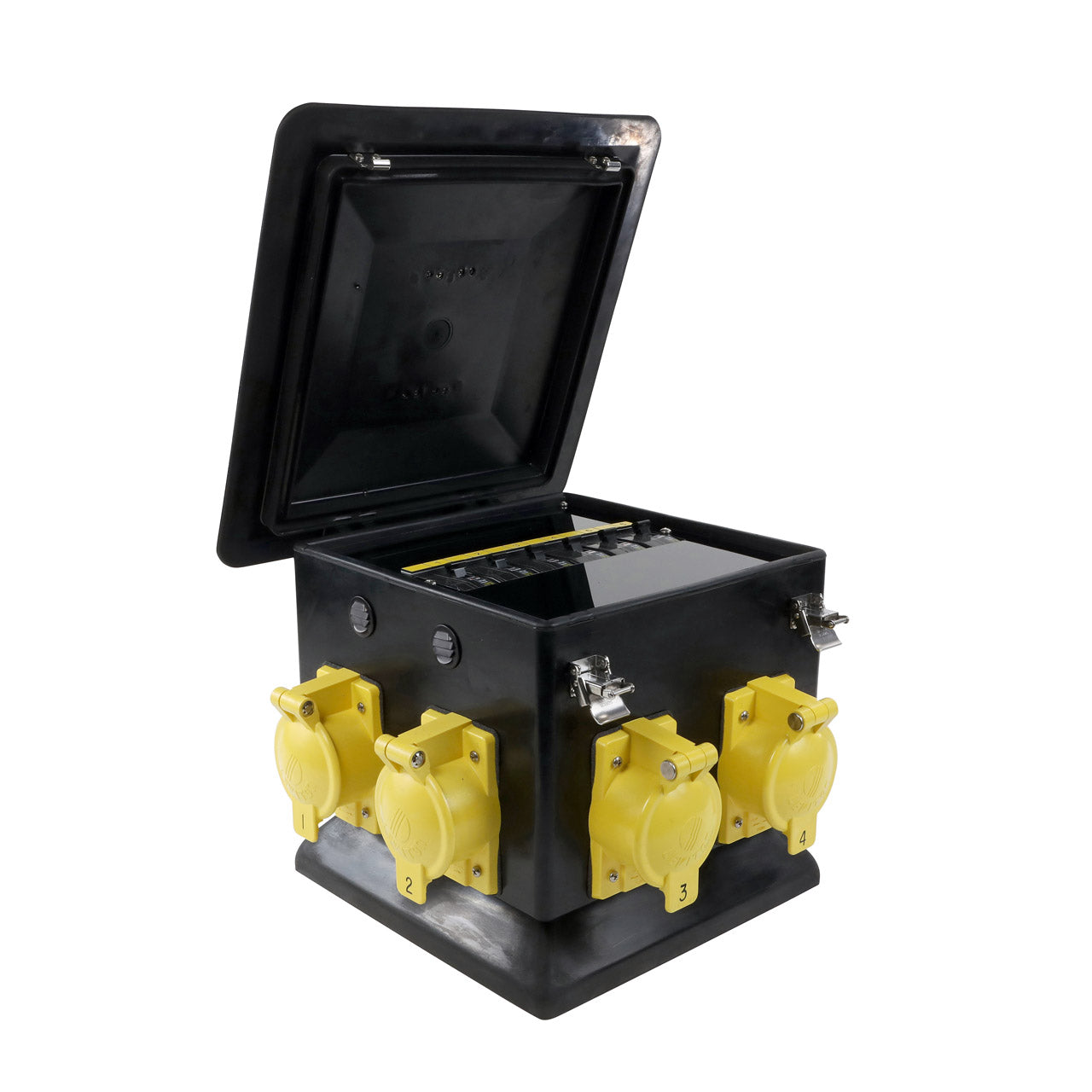

Rubber Enclosure, 200A, Panel Mount Cam Inlet, (6) 50A Locking Receptacles, Type 3R
- This box may be fed directly from a generator, a panel or from a larger box and is able to provide temporary power in disaster relief situations to power lights, pumps, fans and tools
- Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion
- Circuit breakers are mounted under hinged lid for enhanced safety
- Weather-protective receptacle covers
- Stackable and compact for easy storage and portability
- Electrical distribution boxes have an elevated base keeps receptacles above ground level
Markets Served
Convention Centers, Industrial, Emergency and Disaster Relief
Rating: 200 Amp, Three-phase (H,H,H,N,G), 4-pole, 5-wire, 120/208Y VAC, 60 Hz
Environmental Rating: NEMA Type 3R (Weather Resistant)
Input: (1) set of (5) 16 Series, 400 Amp, single pole, single wire, 600 VAC, BRBWG color-coded, cover doors, cam-type inlets, panel mount
Feed Thru: None
Main Breaker: None
Output: (6) California Style CS63, 50 Amp, 3-pole, 4-wire, 125/250 VAC, locking receptacle, cover doors, panel mount
Overcurrent Protection: (6) 50 Amp, 120/240 VAC, double-pole, hydraulic magnetic, branch-rated circuit breakers
Enclosure Type: Pagoda™
Dimensions: 14.25"L x 14.25"W x 14.15"H
Weight: 35.0 lbs
Agency Approval: cULus Listed
