Description

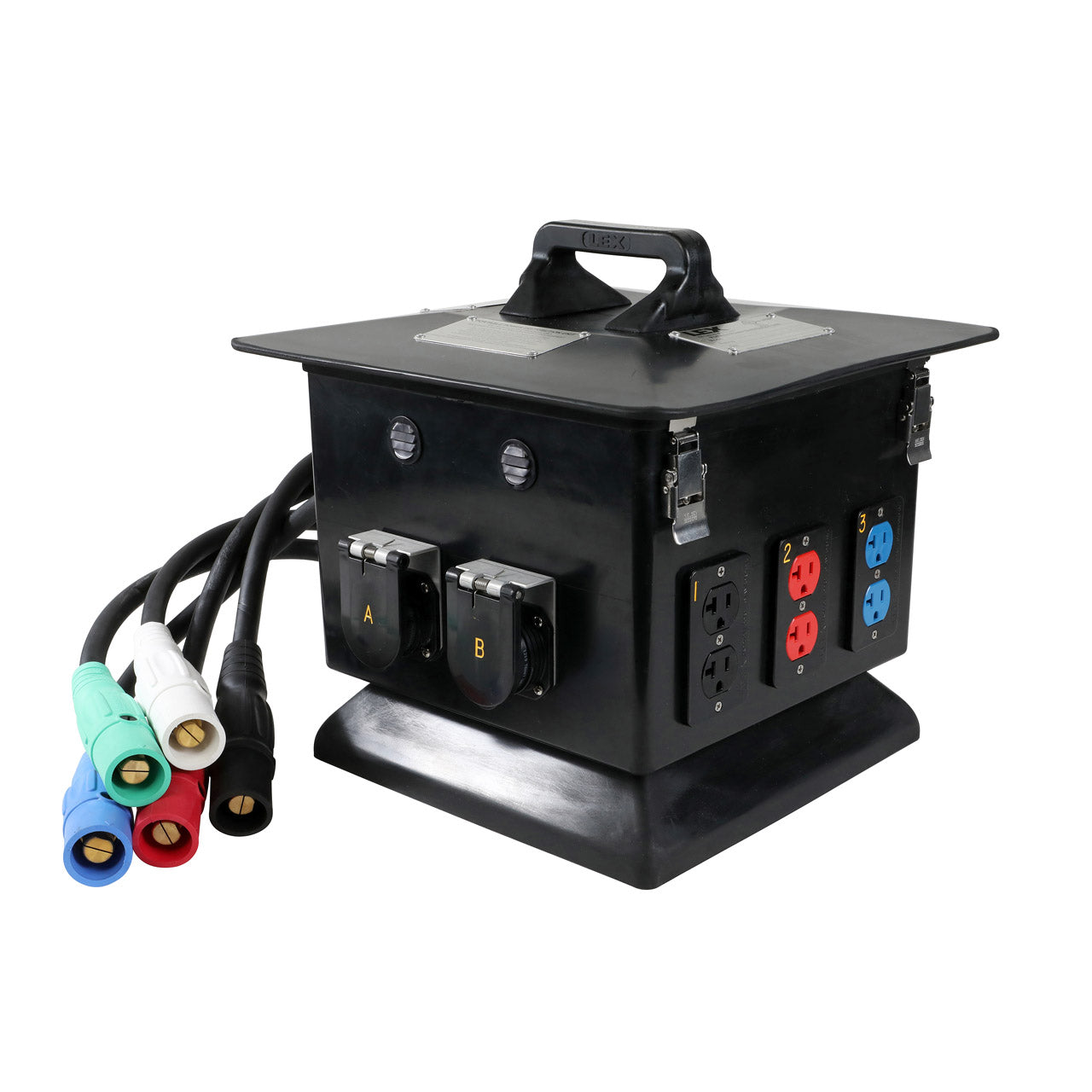

Rubber Enclosure, 200A, Tail Mount Cam Plugs, (4) LSC19 Receptacles, (3) 5-20 Duplex Receptacles,
Type 1
- Fed from a panel or generator, this box provides overcurrent protected power for four multi-cable connections
- This box is typically used with multiple non-dimmed circuits.Provides four outputs for industry standard 6-circuit lighting multi-cable in addition to three duplex receptacles for convenience power
- Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion
- Circuit breakers are mounted under hinged lid for enhanced protection
- Stackable and compact for easy storage and convenient portability
- Elevated base keeps receptacles above ground level
- Reverse neutral and ground option helps prevent mis-mating for enhanced safety
Markets Served
Concert Touring, Theatrical, Live Events
Rating: 200A
Environmental Rating: NEMA Type 1 (Indoor Use)
Input: (1) set of (5) 16 Series Cam-type, 400 Amp, single pole, 600V, color-coded, plugs, 1.5 pigtails
Feed Thru: None
Output: (4) LSC19 19-Pin, 20 Amp, 2-Pole, 3-Wire, 125 VAC receptacles, panel mount; (3) NEMA 5-20, 20 Amp, 2-Pole, 3-Wire, 125 VAC, duplex receptacle, panel mount
Overcurrent Protection: (27) 20 Amp, 125 VAC, single pole, hydraulic magnetic, branch-rated circuit breakers
Enclosure Type: Pagoda
Dimensions: 14.25"L x 14.25"W x 14.15"H
Weight: 39.0 lbs
Agency Approval: cULus Listed
