Description

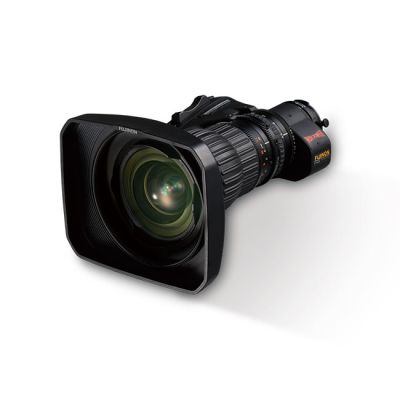

Fujinon ZA12x4.5BERD-S10 2/3'' Select Series Extreme Wide with 2x Zoom Lens
ZA12x4.5BERM / BERD
4.5mm super wide angle of HD Zoom Lens
Outstanding HD High Optical Performance
Equipped New Ergonomic Digital Grip
16bit encoders device for virtual system
Model Name
ZA12x4.5BERM / BERD
Focal length
[1x]
4.5-54mm
[2x]
9-108mm
Zoom ratio
12x
Extender
2x
Maximum relative aperture (F-no.)
1 : 1.8 (4.5-41mm) / 1 : 2.4 (54mm)
Minimum object distance (M.O.D.) from front lens
0.3m
Object dimensions at M.O.D.
16 : 9 Aspect ratio
[1x]
4.5mm 757 x 425mm
54mm 59 x 33mm
[2x]
9mm 373 x 210mm
108mm 31 x 17mm
Angular field of view
16 : 9 Aspect ratio
[1x]
4.5mm 93.6° x 61.8°
54mm 10.1° x 5.7°
[2x]
9mm 56.1° x 33.3°
108mm 5.1° x 2.9°
Filter thread
M127 x 0.75 (Filter attaches to the lens hood.)
Approx Size
φ95 x 237.5mm(φ x Length)
Approx Mass
2.0kg (RM) / 2.07kg (RD) (without lens hood)
