Description

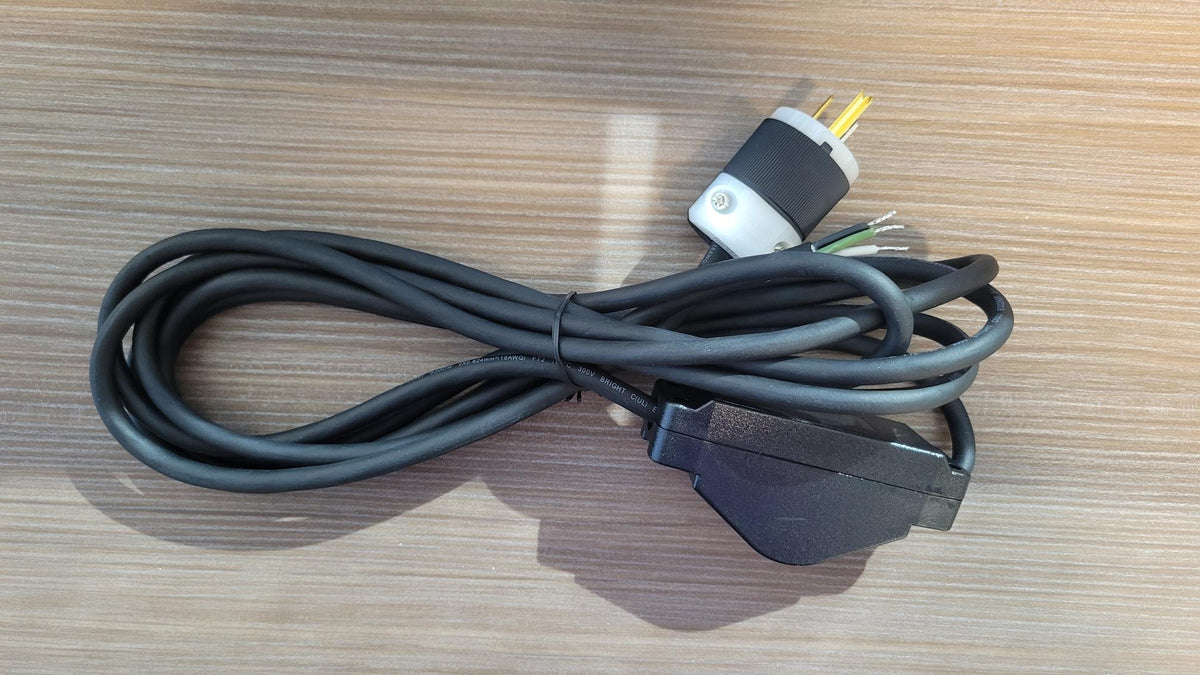

A completely pre-built 15A 120V Rated Edison Male Plug to Bare End with Off On Switch Cable Assembly. This is a universally applicable cable assembly that is perfect for repairing or modifying light fixtures or other electrical devices & equipment that need a large Off / On switch and a reliable connection.
Total approximate assembly length from end to end: ~ 12' (~ 144" / ~ 365 cm)
Cable length from Edison connector to switch box: ~ 8' (~ 96" / ~ 244 cm)
Cable length from switch box to bare end: ~ 4' ( ~ 48" / ~ 122 cm)
1 x MALE B&W, Hospital Grade Edison Connector (15A, 120V)

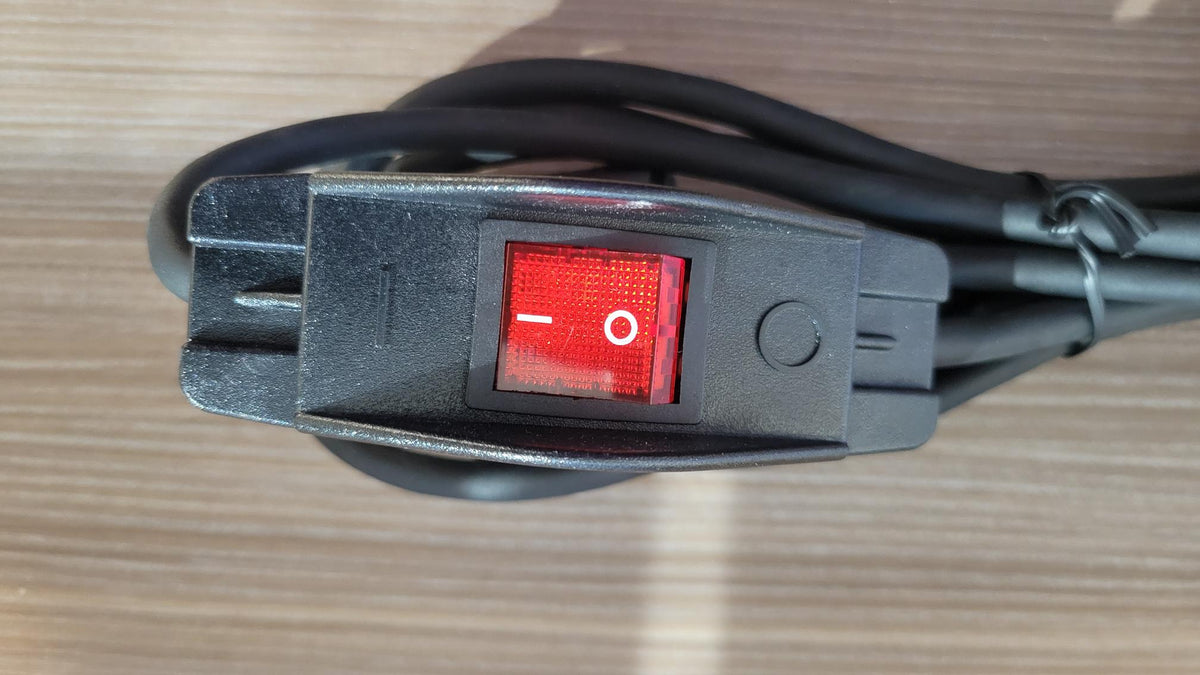

1 x Off / On switch (Illuminates red when in "On" position)
1 x Bare end, 3-conductor cable on opposite end used for hooking up to your device
18 AWG 300V SJOOW UL Cable - Black
*NOTE: Specs printed on the back of the switch read as follows. Apply these higher specs only at your own risk as the switch specs exceed the specs of the included connector. Not responsible for end user usage over 15A / 120V.

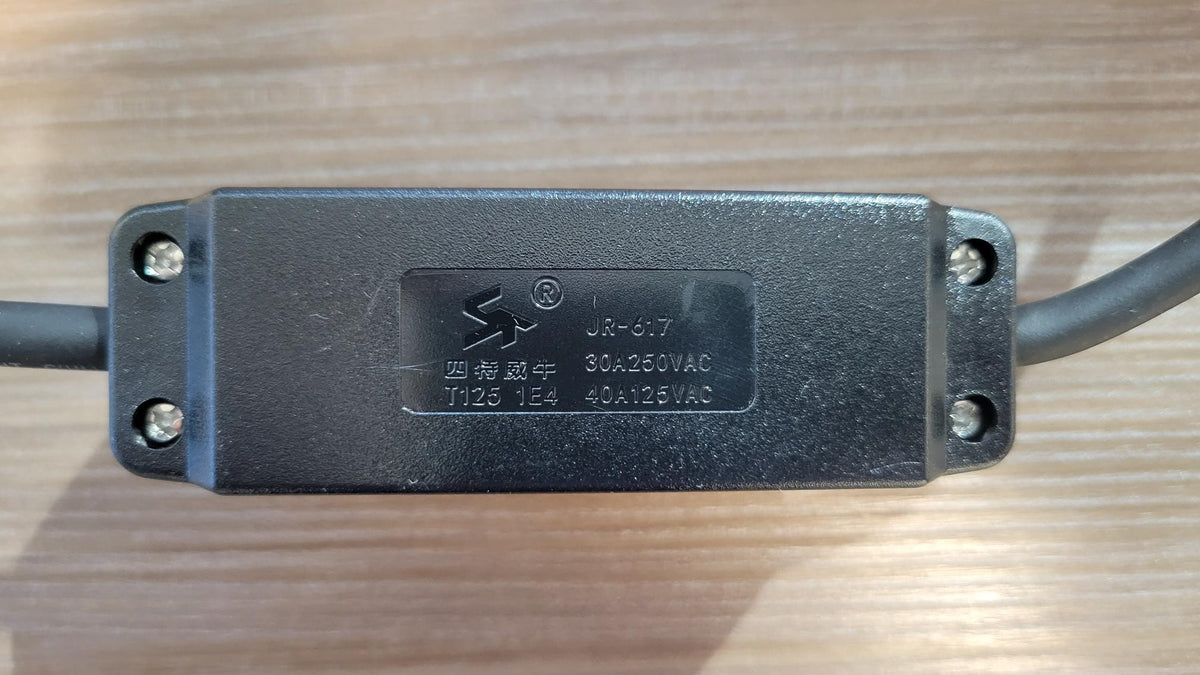

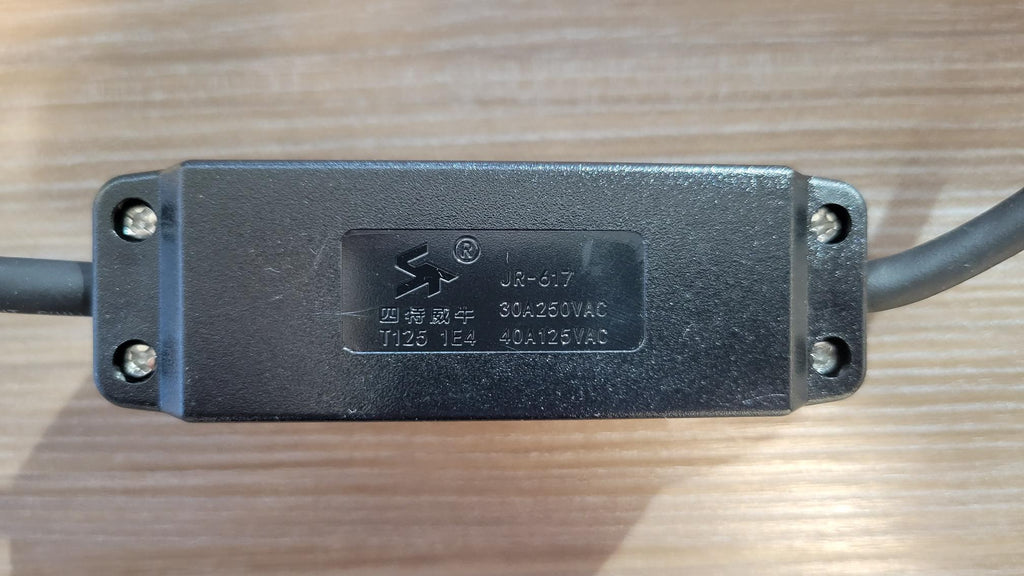

*Switch box specs as shown in photo:
30A 250VAC
40A 125VAC
JR-617
T125 1E4
