Description

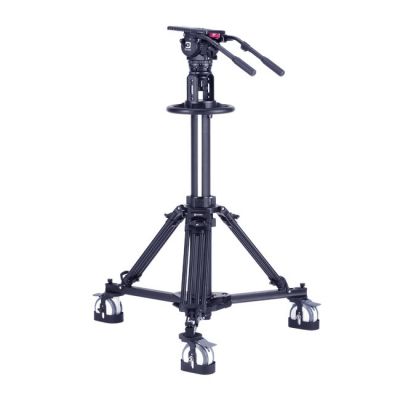

OZEN 20PED40 100mm AGILE 20 E-Z LOAD Tripod System with PED50 Pedestal
AGILE 20 (E-Z LOAD) 100mm fluid head w/2 extending pan bars + PED50 Light Studio Pedestal (includes DOLLY HD)
Ball Size
100mm (100FLATBASE adapter is required)
Payload Range
8.8-61 lbs (4-28 kg)
Accessories Included
2 extending pan bars + PED50 Light Studio Pedestal (includes DOLLY HD)
Fluid Head
AGILE 20
100mm fluid head, S-LOC, 9/9+0 increments fluid resistance, (16) increments counterbalance, (2) extending pan bars, illuminated bubble balance
Ball Size
100mm
Camera Mounting Interface
E-Z LOAD
Payload Range
8.8-61 lbs (4-28 kg)
Counterbalance Increments
16
Pan/Tilt Drag Increments
9/9+0
Tilt Range
+90˚/-80˚
Tripod
PED 50
PED 50 Light Studio Pedestal w/15" on-air stroke -- for use with Flat base, 150mm, or 100mm fluid heads -- includes DOLLY HD heavy-duty studio dolly w/precision asimuth-tracking wheels & cable guards
Payload Range
0-110 lbs. (0-50 kg)
Fluid Head Mounting Interface
Accepts industry-standard 4-bolt Flatbase, and also accepts OZEN's 100FLATBASE and 150FLATBASE adapters to accommodate 100mm and 150mm ball-based fluid heads, respectively.
On-air stroke
15
