Description

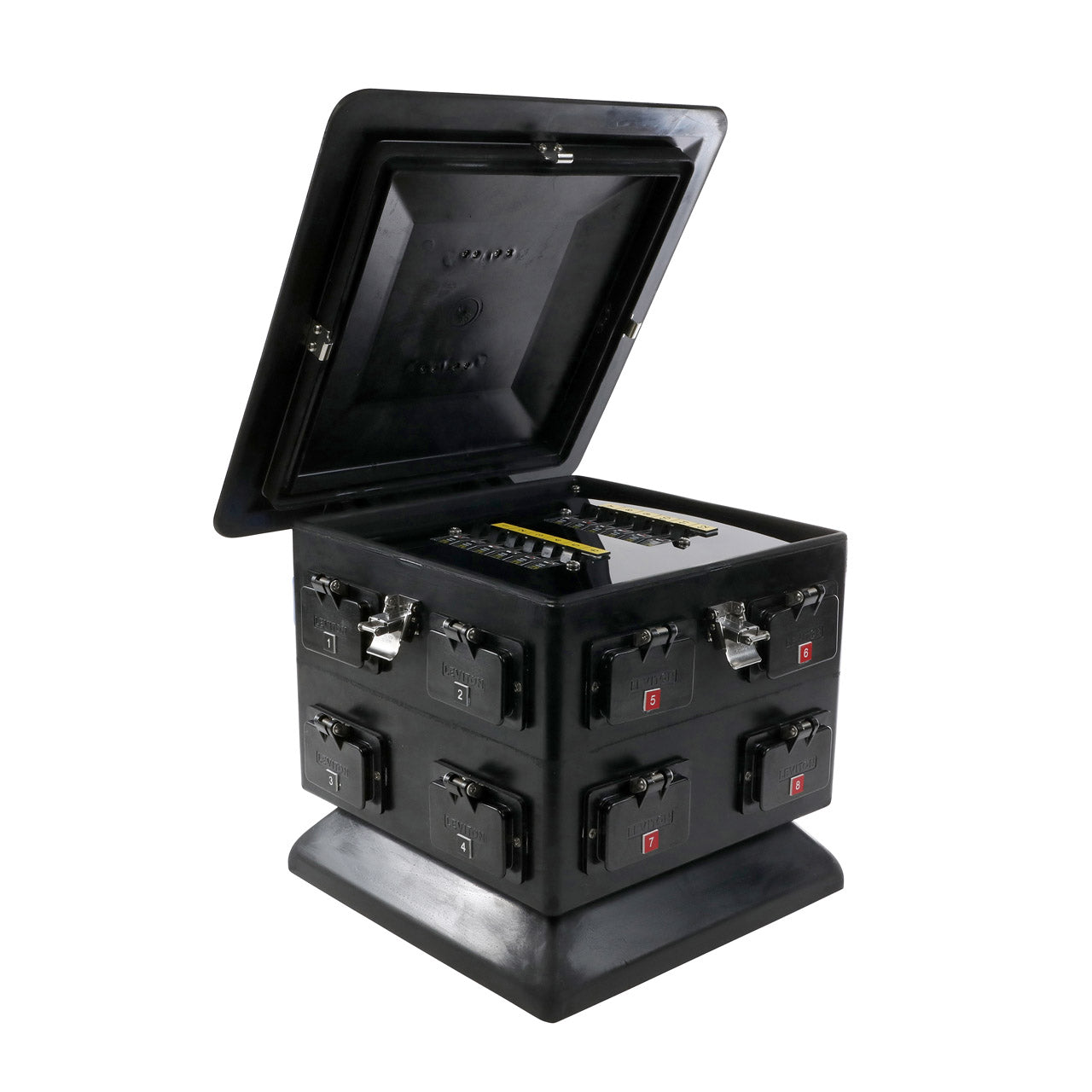

Rubber Enclosure, 100A, Panel Mount Cam Inlet, (12) 20A 5-20 GFCI Duplex Receptacles, Type 3R
- Designed to be the most versatile PowerHOUSE™ portable distribution box, it is fed from a generator or panel and can accept up to (24) NEMA 5-20, 20 Amp Edison cords
- The electrical distribution box is extremely compact and used to power audio equipment, computers, lights and tools
- Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion
- Breakers are mounted under hinged lid for enhanced safety
- Stackable and compact for easy storage and convenient portability
- Elevated base keeps receptacles above ground level
Markets Served
Motion Picture and Television Production, Theatrical, Live Events, Shipyards, Industrial
Rating: 100 Amp, Three-phase (H,H,H,N,G), 4-pole, 5-wire, 120/208Y VAC, 60 Hz
Environmental Rating: NEMA 3R (Weather Resistant)
Input: (1) set of (5) 16 Series, 400 Amp, single pole, single wire, 600 VAC, BRBWG color-coded, cover doors, cam-type inlets, panel mount
Feed Thru: None
Main Breaker: None
Output: (12) NEMA 5-20 GFCI, 20 Amp, 2-pole, 3-wire, 125 VAC, straight blade duplex receptacles, cover doors, panel mount
Overcurrent Protection: (12) 20 Amp, 125 VAC, single-pole, hydraulic magnetic, branch-rated circuit breakers
Enclosure Type: Pagoda™
Dimensions: 14.25"L x 14.25"W x 14.15"H
Weight: 32.0 lbs
Agency Approval: cULus Listed
