Description

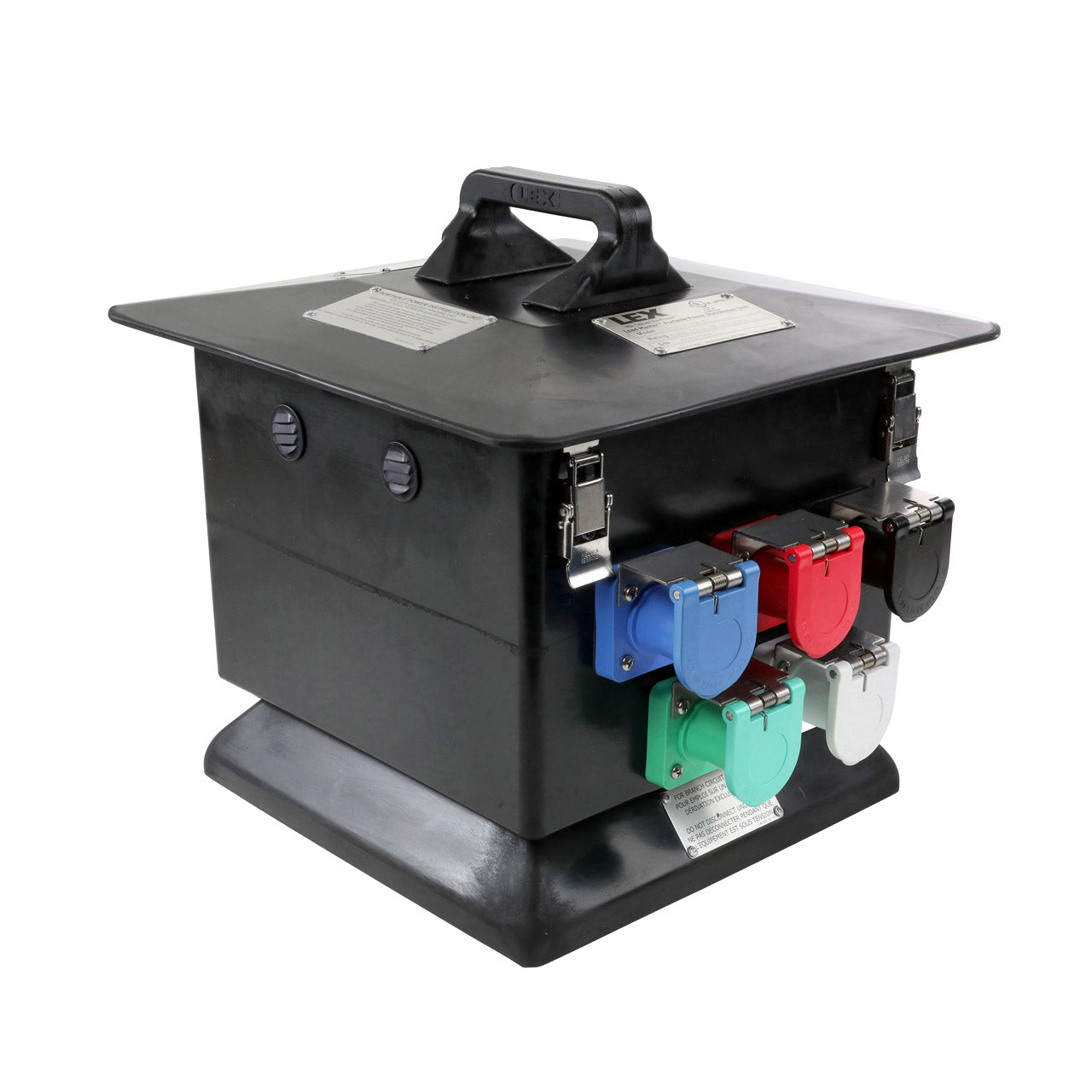

Rubber Enclosure; 250A, 600Y/347 VAC; Panel Mount BRBWG 16 Series Cam Inlets; (1) set of (5) 16 Series Receptacles on an Adjustable Circuit Breaker: (1) 100-250 Amps; Type 3R
- Provides a main disconnect and overcurrent protection for portable power distribution systems
- The current trip setting is adjustable, allowing it to protect a variety of systems with different cable sizes
- Adjustable trip setting allows the box to protect a variety of systems with different cable sizes
- Electronic circuit breaker will not nuisance trip due to high ambient temperatures
- Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion
- The circuit breaker is mounted under hinged lid for enhanced protection
- Stackable and compact for easy storage and convenient portability
- Elevated base keeps receptacles above ground level
Markets Served
Shipyards, Emergency/Disaster Relief, Construction, Outdoor Events, Concert Touring, Entertainment
Rating: 100-250 Amp, Three-phase (H,H,H,N,G), 4-pole, 5-wire, 120/208Y VAC, 60 Hz
Environmental Rating: NEMA Type 3R (Weather Resistant)
Input: (1) set of (5) 16 Series, 400 Amp, single pole, single wire, 600 VAC, BRBWG color-coded, cover doors, cam-type inlets, panel mount
Feed Thru: None
Main Breaker: None
Output: (1) set of (5) 16 Series, 400 Amp, single pole, single wire, 600 VAC, BRBWG color-coded, cover doors, cam-type inlets, panel mount
Overcurrent Protection: (1) 100-250 Amp, 600 VAC triple-pole, adjustable electronic, branch-rated circuit breaker
Enclosure Type: Pagoda™
Dimensions: 14.25"L x 14.25"W x 14.15"H
Weight: 44.0 lbs
Agency Approval: cULus Listed
