Description
World-class dimming performance, industrial-strength construction and an array of connection options make Sensor®3 Portable Packs the professional choice for smaller touring shows, industrial rentals, compact video productions, and rehearsal spaces.
Sensor3 Portable Packs deliver built-in dimming features that many installation racks would envy: modular design and magnetic circuit breakers. Add to that optional Advanced Features communication and remote monitoring options. Choose the control protocol you need: DMX, or Net3/ACN. Attach your load outputs to any industry-standard connector type. And quit worrying about the pounding that mobile productions dish out. Sensor3 Portable Packs are built to take it.

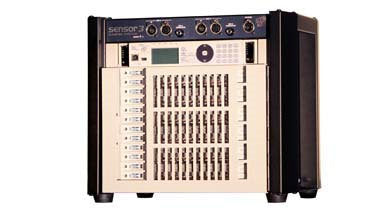

ETC SP3-1220B Sensor3 Portable Pack Features:
Available in six- and 12-dimmer module configurations
Direct Ethernet-controls signal input, and two DMX inputs
Cam-Lok input connectors
Pass through connectors available for SP3-6 and SP3-12
Multi-pin output configurations include Veam® VSC, Pyle National® andSocapex®
Optional castered cart available
CEM3 Control Electronics Module
Supports Advanced Features option
Supports Dimmer Doubling™
ETC SP3-1220B Sensor3 Portable Pack Specifications:
GENERAL
Two sizes of pack available:
Small - 6 modules, 12 dimmers maximum
Large - 12 modules, 24 dimmers maximum
Underwriters Laboratories cUL Marked, tested and Listed to the following standards:
UL508 (File: E152039)
Complies with ESTA DMX512-A Standard
Ambient temperature: 0-40°C / 32-104°F
Relative humidity: 10-90% non-condensing
MECHANICAL
Rugged aluminum construction
Fine-textured, scratch-resistant, gray and black epoxy paint
No tools required for module removal or installation
Keyed module slots prevent insertion of inappropriate module types
THERMAL
High efficiency cooling system with airflow sensor
Easily cleaned electrostatic air filter
Low-noise fan for quiet operation
Ambient temperature: 0-40°C / 32-104°F
ELECTRICAL
Easily switches from single–phase 120/240 VAC to three-phase 120/208 VAC operation
Cam-Lok power input connectors
Cam-Lok pass thru connectors available
Max Pass-through buss rating for
SP3-6: 100A
SP3-12: 200A
Line feed voltage range is 91-139 VAC*
Power frequencies from 47-53; 57-63Hz
Choice of Stage pin, Edison or Twist-Lock® or 19-pin multi-pin output connectors
ELECTRONICS
CEM3 Power Control
Full number pad for fast access to dimmer override and setup
Graphical backlit display
Standard diagnostic reporting
OPTIONS
Advanced Features dimmer-specific output reporting - requires Advanced Features (AF) dimmer modules
Custom output panels (call ETC for details)
Cam-Lok™ pass-through panel
Castered Cart
