Description

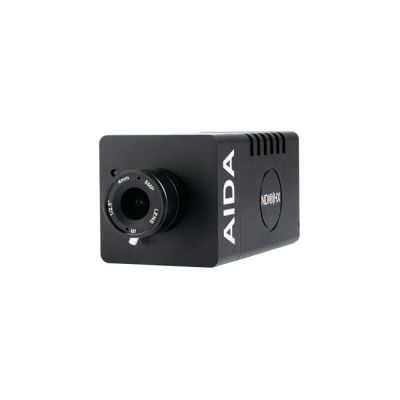

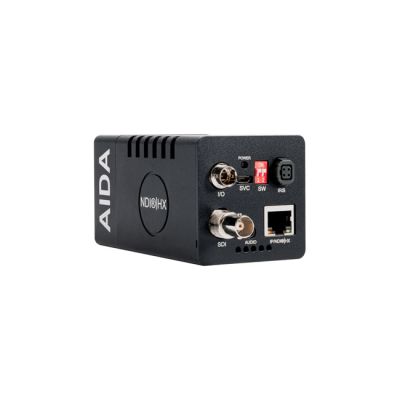

AIDA Imaging FHD NDI®|HX/IP/SRT/3G-SDI PoE and IP Control POV Camera
The HD-NDI-200 formula, now with 3G-SDI
IP infrastructure can be daunting.. but don’t be scared! The HD3G-NDI-200 introduces an easier, effective solution that brings any SDI workflow that new IP connectivity and NDI! Boasting a familiar form factor and performance like the HD-NDI-200, the HD3G-NDI-200 brings NDI HX and 3G-SDI simultaneously. So no need to sacrifice the 3G-SDI cable, just sacrifice those serial and power cables for an easier, PoE+ connections for power, control and video over 1 ethernet cable!
MAIN FEATURES
Full-HD 1/2.8” Progressive Scan CMOS sensor capable of 1080 60p NDI® HX and 3G-SDI video.
Accessible Web UI to stream directly to social media platforms and control image parameters over IP.
Versatile and discreet design perfect for sleek, multi-leveled image capturing in most scenarios.
OSD breakout cable provides power or control over serial RS485 communication.
Flawlessly relays multi-channel embedded audio via NDI® HX2
Perfectly suited for upgrading existing 3G-SDI workflows to IP / NDI® HX capabilities.
SPECIFICATIONS
VIDEO
Image Sensor 1/2.8” Progressive CMOS
Effective Pixels Horizontal: 1920, Vertical: 1080 Pixel Size 2.9 μm (H) x 2.9 μm (V)
Resolution 1080p, 1080i, 720p
Resolution Rate 1080 60p/59.94/50p/30p/29.97p/25p 24p/23.98p
1080 60i/59.94i/50i
720 60p/59.94p/50p/30p/29.97p/25p Output 3G-SDI, RJ45, NDI® HX2
IP Rate 1920 x 1080 @ 3~60
1280 x 720 @ 3~60
1024 x 576 @ 3~60
620 x 360 @ 3~60
Color Space 4:2:2 (YCbCr) 10bit LENS Lens C/CS Mount (Default 4mm HD Lens)
AUDIO
Input 3.5mm TRS Stereo Audio Port Sample Rate 16/24/32 Bits
PHYSICAL
Camera Control Protocol: VISCA RS485, VISCA Over IP
Control: OSD Button or Web UI
Operation Temp 32°F - 104°F
Dimension 54mm x 54mm x 127mm / 2.125” x 2.125” x 5” (With default 4mm Lens)
Power 12VDC (+9 - +15VDC)/ POE
What’s In The Box
1x HD3G-NDI-200 camera
1x I/O Breakout Cable
1x DC 12v Power Supply & Sockets Adapter
1x 4mm Megapixels Lens(Pre-Installed)
1x USB Cable
1x C-Mount Cap Adapter
1x Sensor Cap
