Description
ETC's Eos® Fader Wings provide extended playbacks for Eos Ti, Gio, Gio @5, Ion, Ion Xe, Ion Xe 20, Eos/Ion/Ion Xe RPUs, RVIs, ETCnomad (PC or Mac native) and ETCnomad Puck. Up to three wings can be attached to any of these devices.

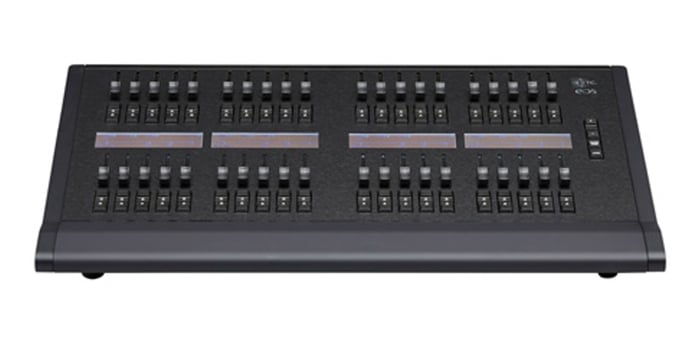

This model, the Eos FW 40, is equipped with 40 faders, four 4.2" high-resolution monochrome LCDs and two control buttons per fader. The Eos FW 40 provides power sensing and automatically turns on when both an active USB data connection and mains power are provided via the external 12V power supply.
Connected devices must be running Microsoft Windows 7 or higher, or Mac OSX 10.11 (El Capitan) or later. The Eos FW 40 is not compatible with Windows XP.
ETC Eos FW 40 Fader Wing Includes:
Fader wing
Power supply
IEC power cord
Dust cover
USB cable
ETC Eos FW 40 Fader Wing Features:
Pageable playbacks (100 pages are supported)
Paging/bank conventions are determined in a setup menu
Button/fader and configuration mapping displayed via high-resolution displays
Two powered USB ports
VESA 100x100mm mountable
Kensington Lock compatible locking point
ETC Eos FW 40 Fader Wing Specifications:
Interfaces:
AC input (100-240VAC at 50/60Hz) with external power supply
Two USB ports
Dimensions (HxWxD): 3.93" x 22.30" x 14.24" (100 x 566 x 362 mm)
Weight: 8.5 lbs (3.86 kg)
