Description

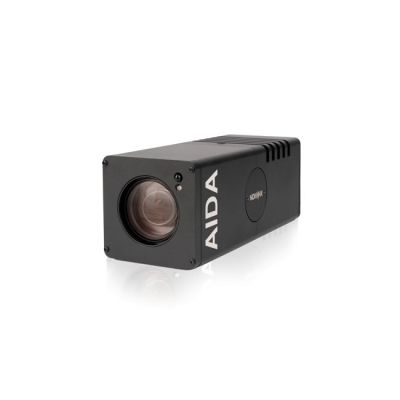

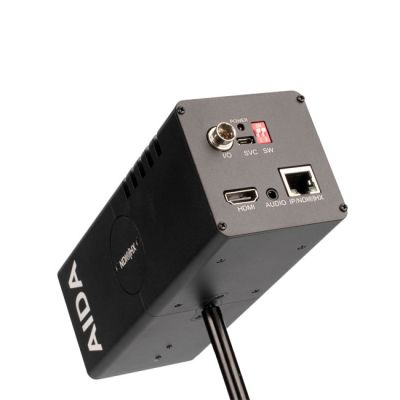

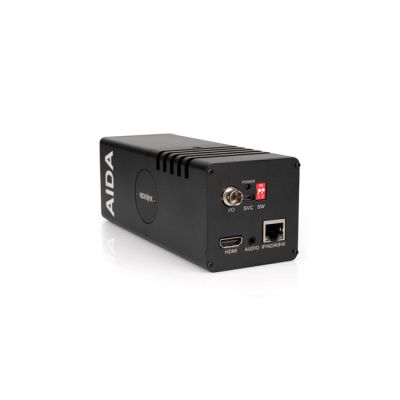

AIDA Imaging Full HD NDI®|HX/IP/SRT/HDMI PoE 20X Zoom POV Camera
The ultimate POV NDI®HX one man army.
When it comes to streaming workhorses, the HD-NDI-X20 does it all. From streaming HDMI and NDI®|HX,to relaying visually inspiringFHD quality with 20x optical zoom, its no wonder why the HD-NDI-X20is ajuggernaut in the streaming world.
The HD-NDI-X20 gets the best of both worlds in AIDA’s POV and PTZ world with its POV camera form-factor and Full-HD 20x optical zoom. It outputs crisp 1080p60 video over HDMI, NDI|HX, and IP.
MAIN FEATURES
Full-HD 1/2.8” Progressive Scan CMOS sensor capable of 1080 60p NDI®|HX Video.
Accessible Web UI to stream directly to social media platforms and control image parameters over IP.
20x optical zoom for FHD shots over distances of up to 140 ft.
OSD Breakout cable provides power or control of zoom over serial RS485 communication.
Flawlessly relays multi-channel embedded audio via NDI®|HX.
Perfectly suited for beginning and exisisting NDI® setups.
PoE Compatible to ease cable runs with 1 ethernet cable.
SPECIFICATIONS
VIDEO
Image Sensor 1/2.8” Progressive CMOS
Effective Pixels Horizontal: 1920, Vertical: 1080
Pixel Size 2.9 μm (H) x 2.9 μm (V)
Resolution 1080p, 1080i, 720p
Resolution Rate 1080 60p/59.94/50p/30p/29.97p/25p
24p
1080 60i/59.94i/50i
720 60p/59.94p/50p
Output HDMI, IP (NDI|HX/SRT/RTMP/RTSP)
Color Space 4:2:2 (YCbCr) 10bit
Min Illumination 0.2Lux (day), 0.1Lux (Night)
OPTICS
Lens 20X HD Optical Zoom, F1.5 ~ F3.0
Field of View 61Æ WIDE, 3.4Æ TELE’d
STANDARD
IP Protocol UDP|IP, RTSP|RTMP, SRT, NDI|HX
AUDIO
IP Protocol 3.5 TRS Stereo Audio Port
Sample Rate 16/24/32 Bits
PHYSICAL
Camera Control Protocol: VISCA Over IP
Control: OSD Button, Web UI or Controller
Operation Temp 32ÆF - 104ÆF
Dimension 171mm x 64mm x 64mm (6.73in x 2.52 in x 2.52 in)
Weight 800g / 1.76lbs (with default WP cap)
Power 12VDC (+9 - +15VDC) (PoE+ 24Watts)
